NGtwo

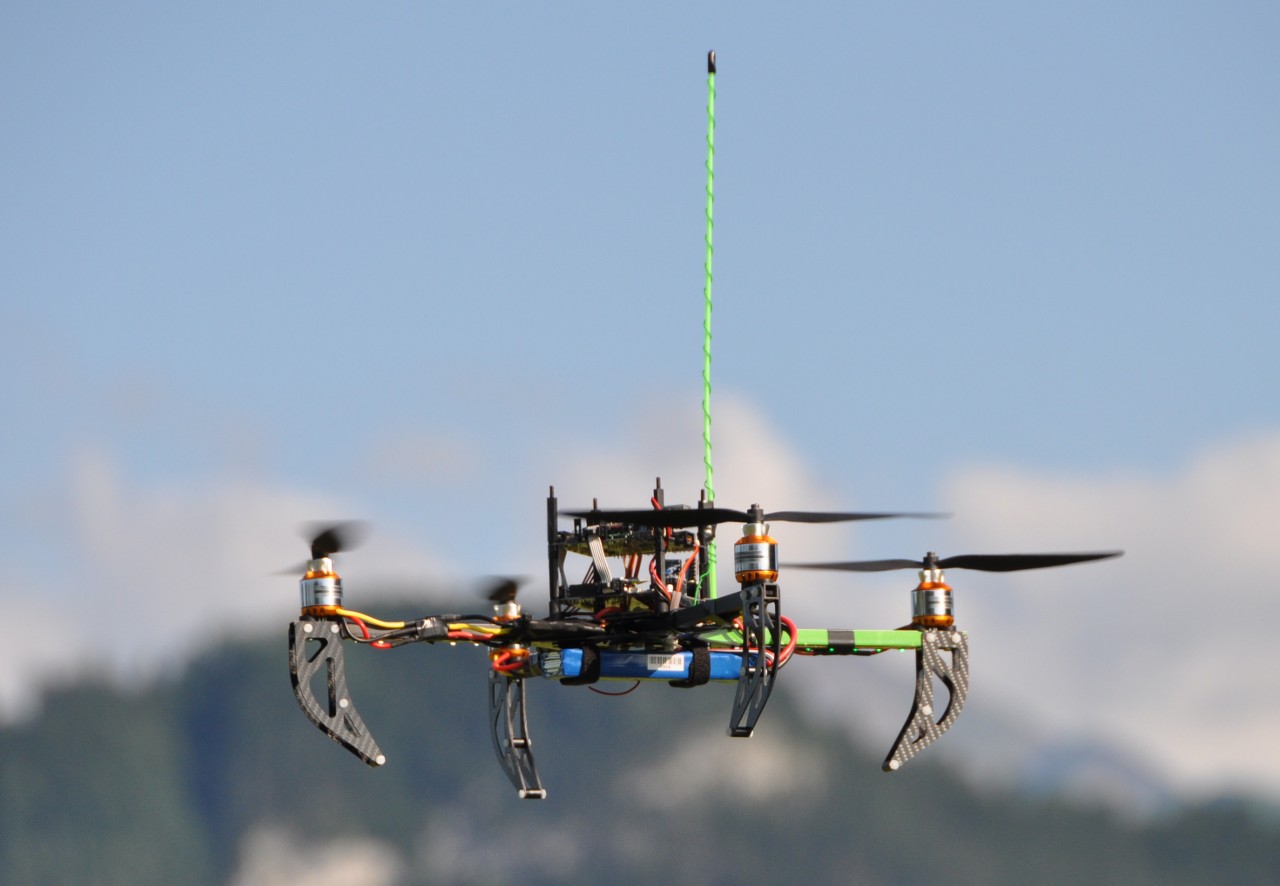

falstaff’s NGtow
Description
My second quadrocopter, again based on NG HW 0.22 with 1cm aluminium frame. The Centerplate is the concave Centerplate from the CAD section made with 1.5mm CFK. I also improved several other things compared to my first quadrocopter, about which I wrote an entry in my Blog.
Specifications
||<tablestyle=“width: 95%">Maidenflight|| 31.07.2010 || ||HW Revision||HW-0.22|| ||Motors||4x Turnigy TR28-30 1100kv|| ||Controllers|| 4x Mikrokopter BL-Ctrl V1.2|| ||Propellers||Maxxprod EPP1045|| ||Receivers||1x ACT-DSL4top|| ||Total Weight||~900g (with Zippy 2650mAh battery)|| ||Motor Weight||58g/motor|| ||Frame Type||Alu-Cross 1cm, with concave Centerplate|| ||Frame Span||44cm|| ||Batteries||Turnigy 30C 1x4500mAh (390g), 2x3300mAh (290g), 1x2650mAh (240g), Zippy 30C 2x2650mAh (240g)||
Pictures
