NGmini

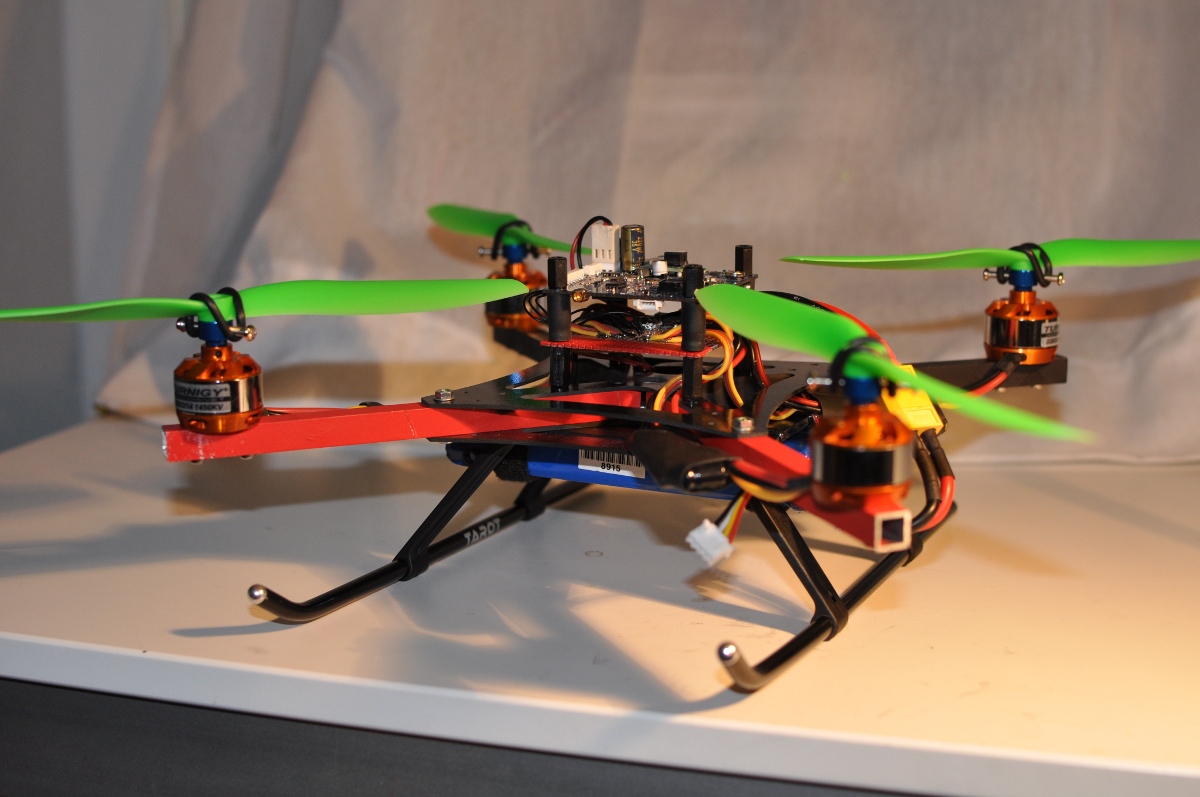

falstaff’s NGmini
Description
My third quadrocopter, based on the 0.23-mini-r0 HW with 1cm aluminium frame. The Centerplate is the concave Centerplate from the CAD section made with 1.5mm CFK with some additional holes.
Specifications
||<tablestyle=“width: 95%">Maidenflight|| 05.08.2012 || ||HW Revision||HW-0.23-mini-r0|| ||Motors||4x Turnigy D2822/14 1450kv|| ||Controllers|| 4x Mikrokopter BL-Ctrl V1.2|| ||Propellers||Flyduino 8"x4.5|| ||Receivers||1x ACT S3D-4+2 XS|| ||Total Weight||~690g (with Zippy 2650mAh battery)|| ||Motor Weight||38g/motor|| ||Frame Type||Alu-Cross 1cm, with concave Centerplate|| ||Frame Span||30cm|| ||Batteries||Turnigy 30C 1x4500mAh (390g), 2x3300mAh (290g), 1x2650mAh (240g), Zippy 30C 2x2650mAh (240g)||
Pictures
