NG021
Rob’s NG
Description
My HW0.21 NG with the CNC-Parts of the frame you can find in the CAD-Section. It has quite a good power-to-weight ratio and a very long flight time with the 5000mAh battery. The TR35-30C start up nicely on the Quax Controllers, even with 12" Props. It’s recommended to use 20A+ Controllers and Batteries that can handle ~60-80A. Setting is a slightly modified 12" MLX default.
Specifications
||<tablestyle=“width: 95%">Maidenflight||5.11.2009 || ||HW Revision||HW-0.21|| ||Motors||4x Turnigy TR35-30C|| ||Controllers||4x Dragon Sky 20A with Quax’s firmware|| ||Propellers||Maxxprod EPP1245|| ||Receivers||Graupner C17, Spektrum Sattelite (not yet running)|| ||Total Weight||1436g (incl. 5000mAh batteries and FPV gear)|| ||Motor Weight||78g/motor|| ||Frame Weight||~350g || ||Frame Type||Alu-Cross 1.15cm, with CNC-Parts (1.5mm Glassfibre, Centerplates: 1mm Carbon)|| ||Frame Span||53.25cm|| ||Batteries||Zippy Flightmax 20C 5000mAh|| ||Additional Stuff|| BTM222 Bluetooth Module, LED-Stripes, Adjustable/Nick-Compensated Cameramount, NGVideo, Intelligent Flight OSD, Transportbox||
Pictures

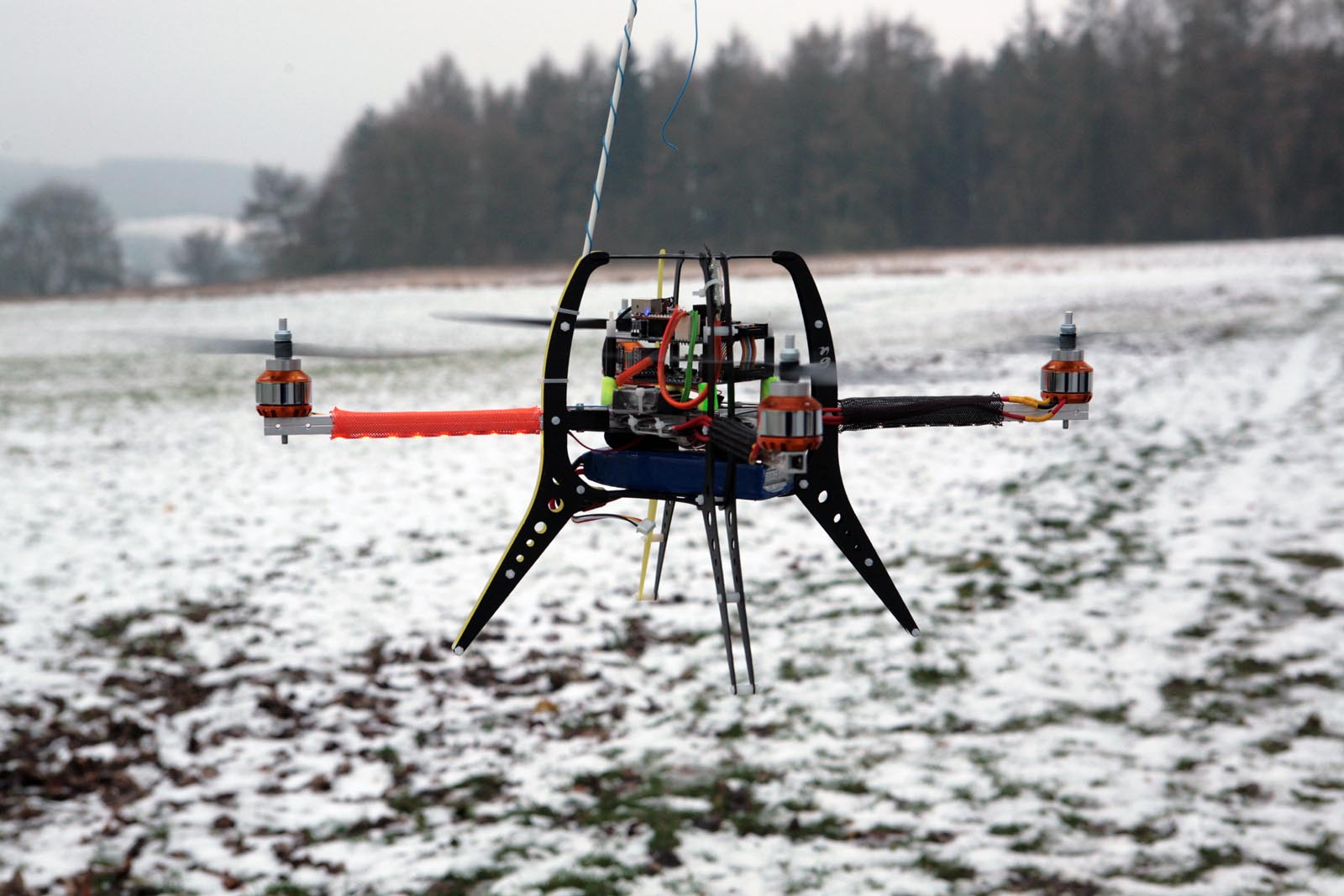

During a Testflight

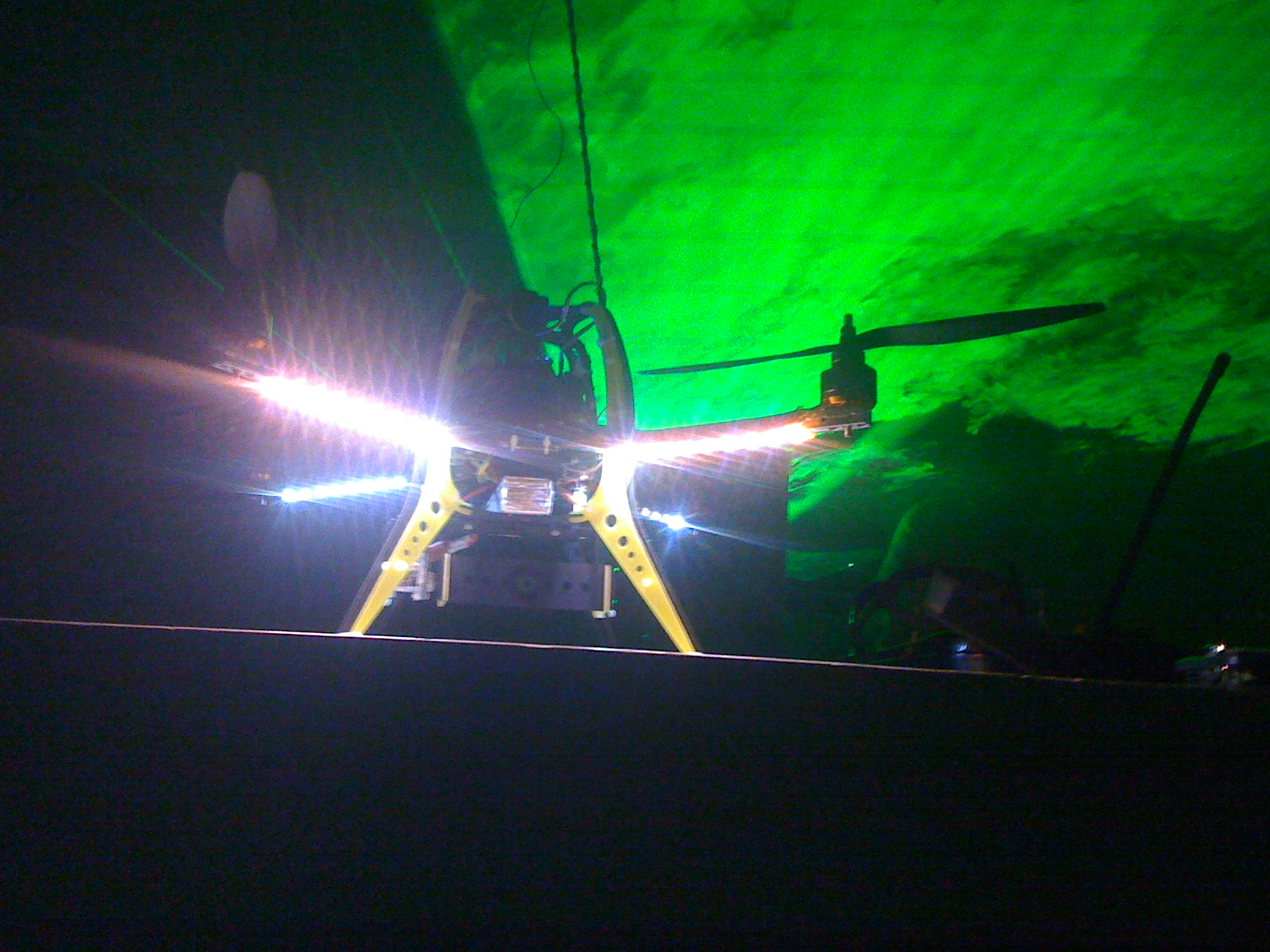

At the Lazershow at 26C3, Dec 30 ‘09

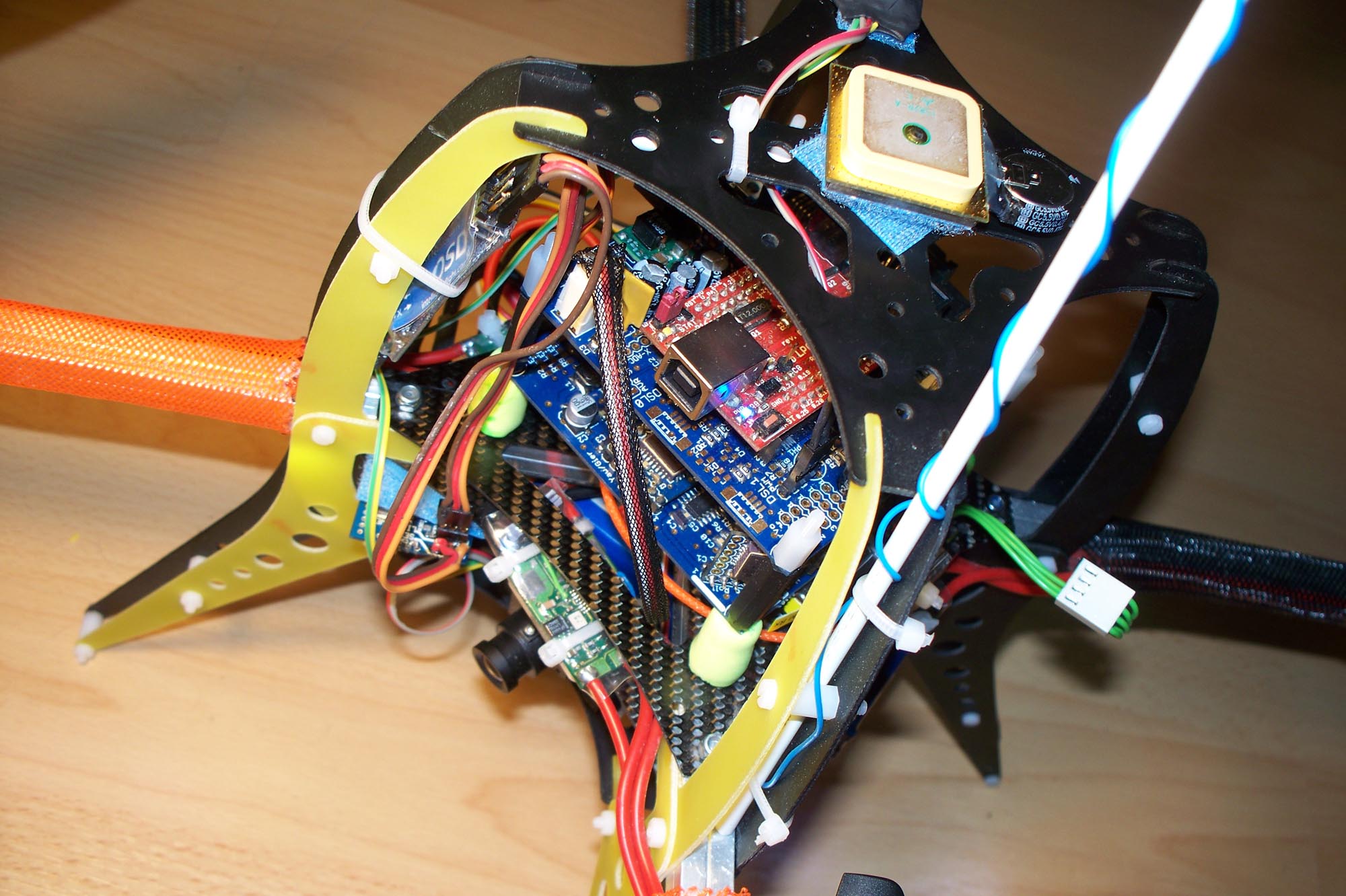

Full OSD/FPV option
