MiniNGIII
pete’s NGIII
Description
My third Quadcopter, based on NG HW 0.22 mini-r3 and ngblc-4mini-r1 with a custom pure CFK frame. ngblc-4mini works with SimonK software modified for Atmega 168. 8’ Props are mounted, but the frame is capable up to 10'.
Specifications
||<tablewidth=“95%">Maidenflight ||17.02.2013 || ||HW Revision ||HW-0.22 mini-r3 || ||Motors ||4x Turnigy D2830/11 || ||Controllers ||ngblc-4mini-r1 || ||Total Weight ||~790g (including battery) || ||Motor Weight ||56g/motor || ||Frame Weight ||ca. 180g || ||Frame Type ||CFK parts 1,5 and 3mm || ||Frame Span ||38cm || ||Batteries ||Zippy Compact 3S 35C 2700mAh ||
Pictures

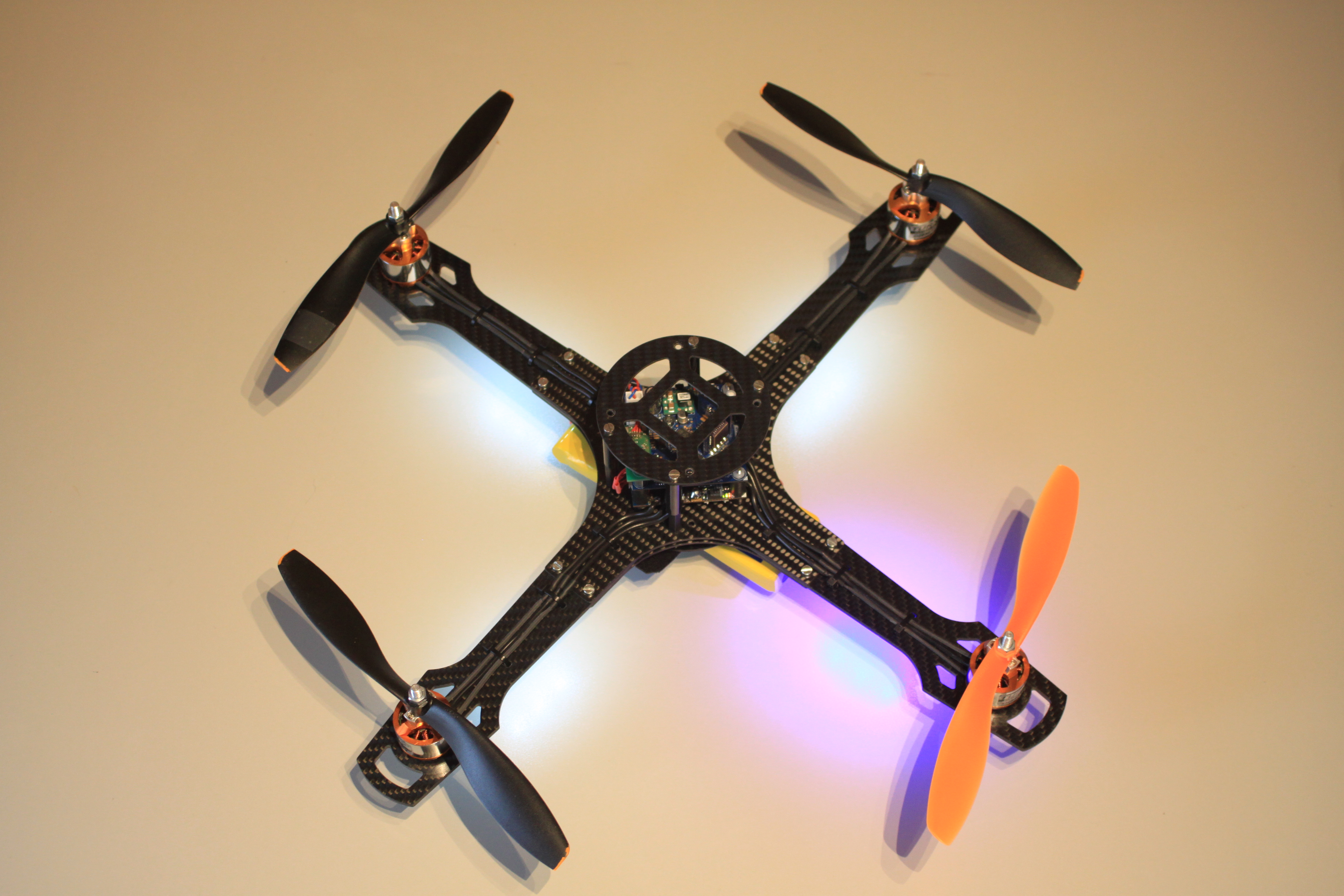

Finished CFK-Copter (landing gear to add)

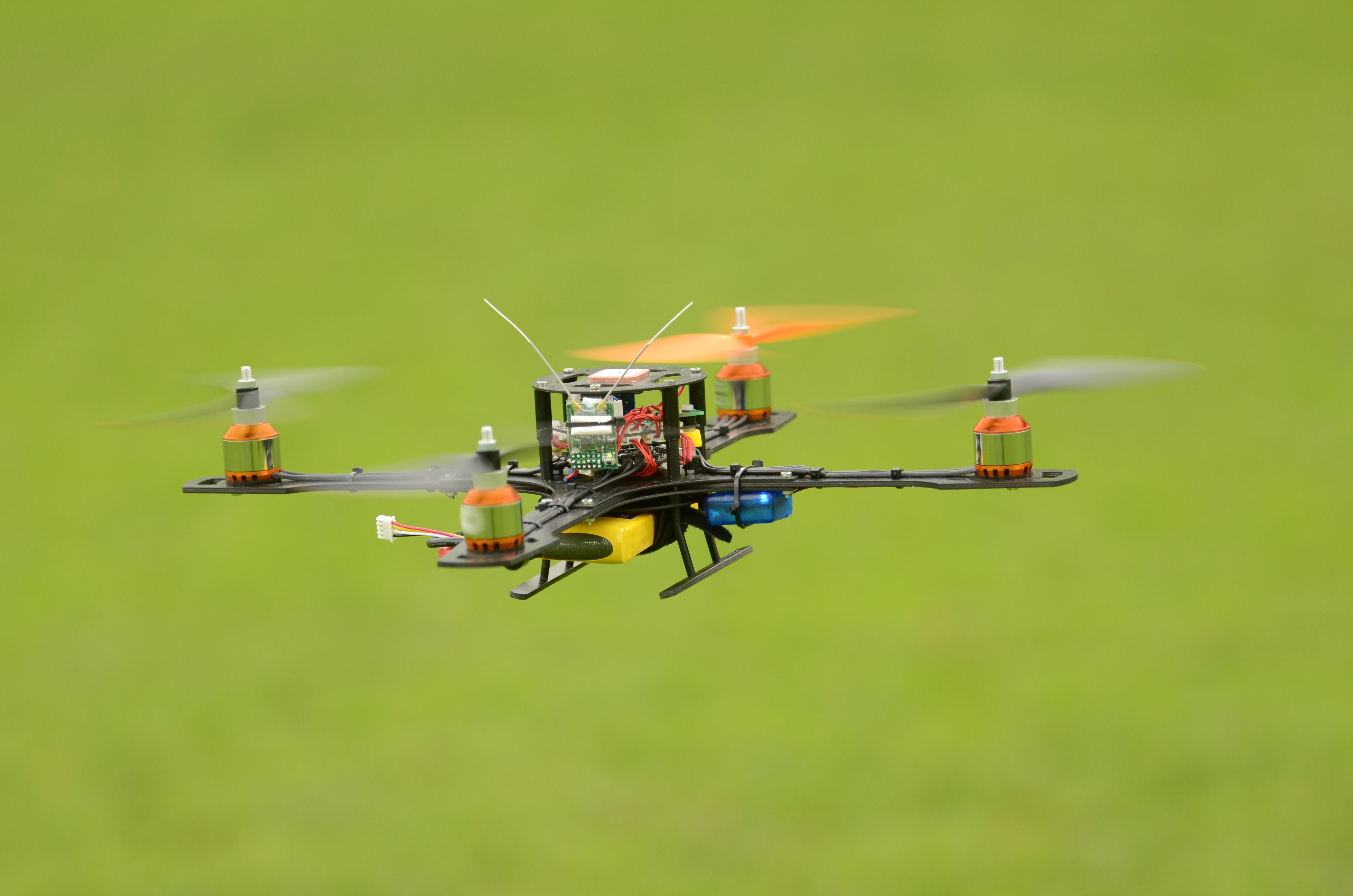

Flying …
