MiniNG8
Amir’s Mini-NG with NGblc-r1 and HW-0.23-mini-r0/0.24-mini-r1
Description

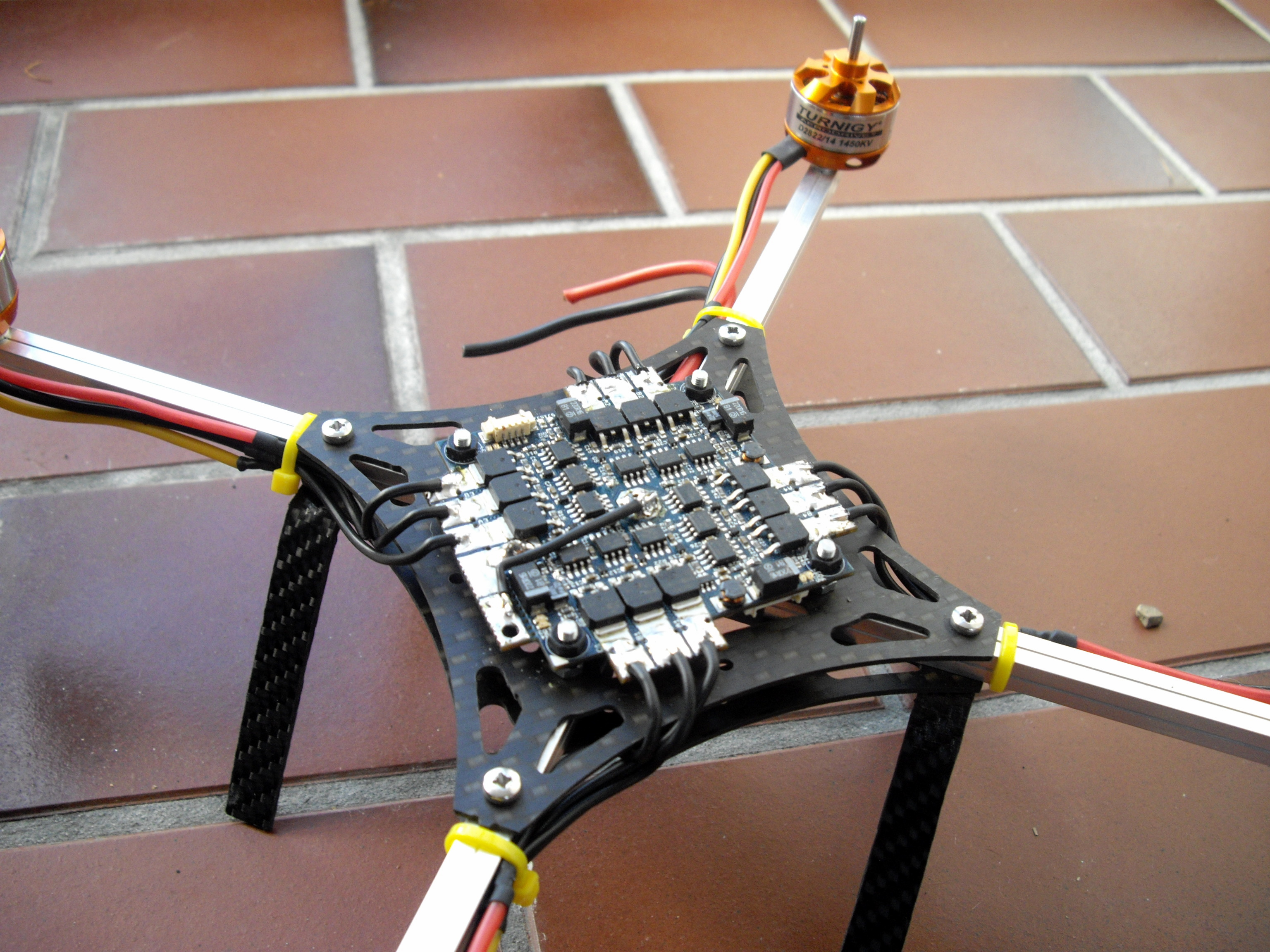

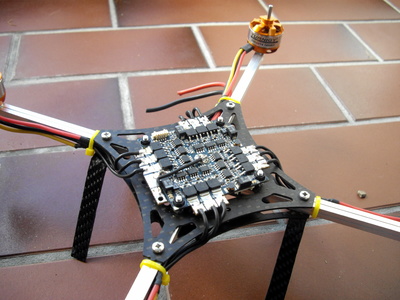

This is a light over-motorized 8" NG built for funflying and racing. The copter uses Turnigy D2822/14 motors and the frame is built from 0.75mm aluminium rods. It uses our new NGblc-r1, a quad BLC board capable of up to 30A.
Specifications
||<tablestyle=“width: 95%">Maidenflight||22.12.2012|| ||HW Revision||HW-0.23-mini-r0 and HW-0.24-mini-r1|| ||Motors||4x Turnigy D2822/14|| ||Controllers||NGblc-r1|| ||Total Weight||446g (with 8” props props, RGB LEDs, landing gear and no battery)|| ||Motor Weight||38g/motor|| ||Frame Weight||? || ||Frame Type||Alu-Cross 0.75cm|| ||Frame Span||30.5cm|| ||Batteries||Nanotec 1400mAh 40-80C||

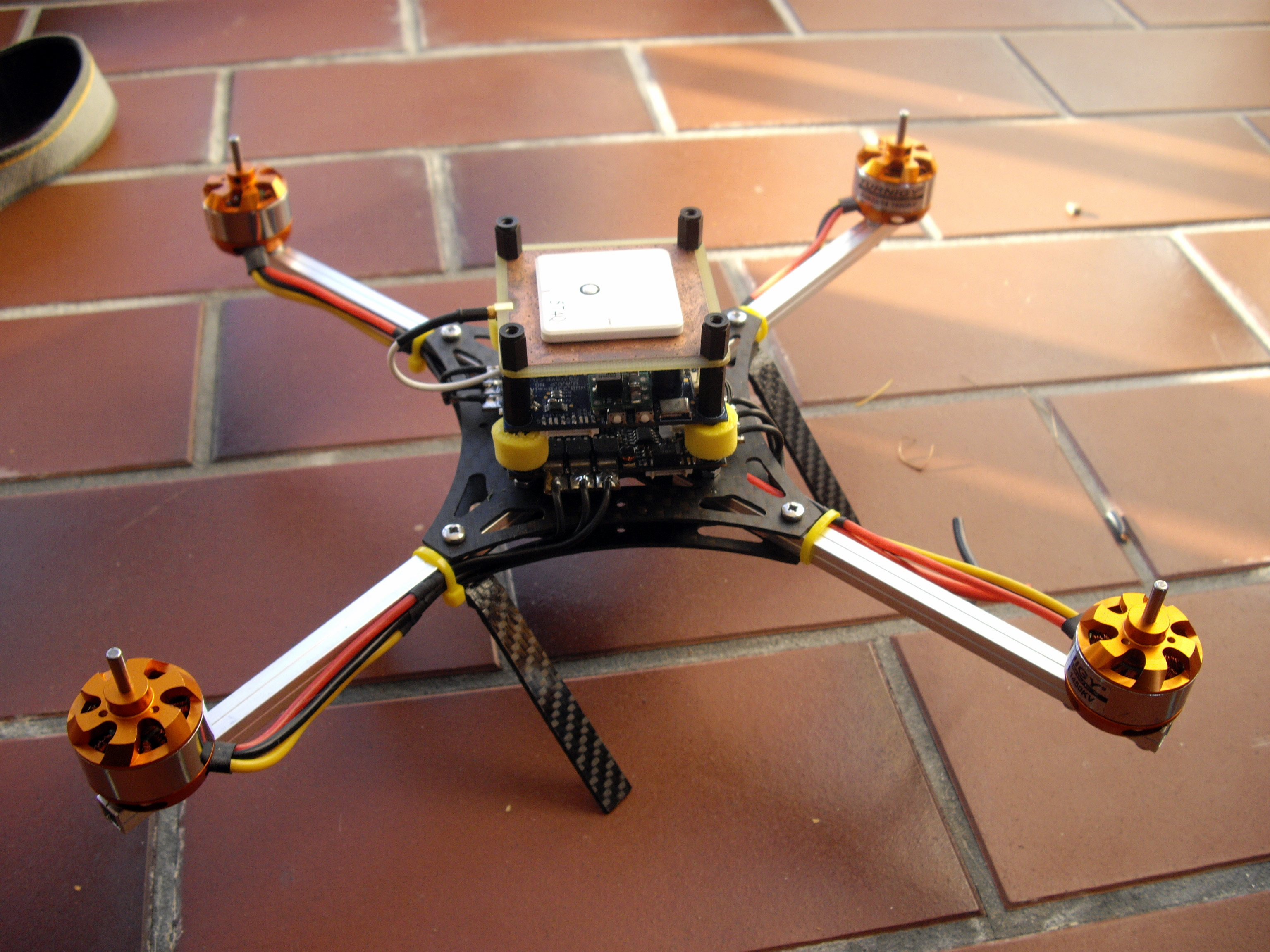

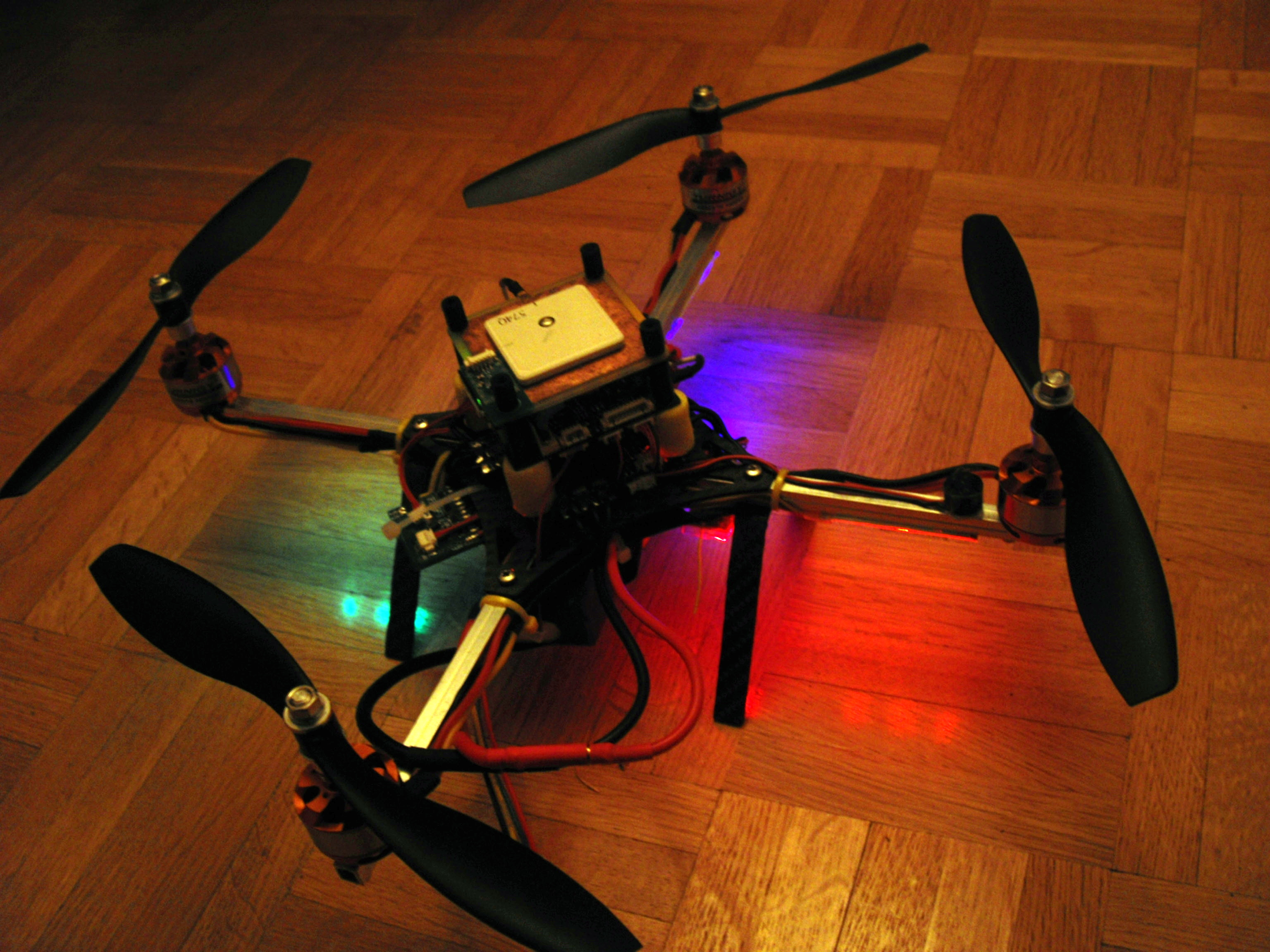

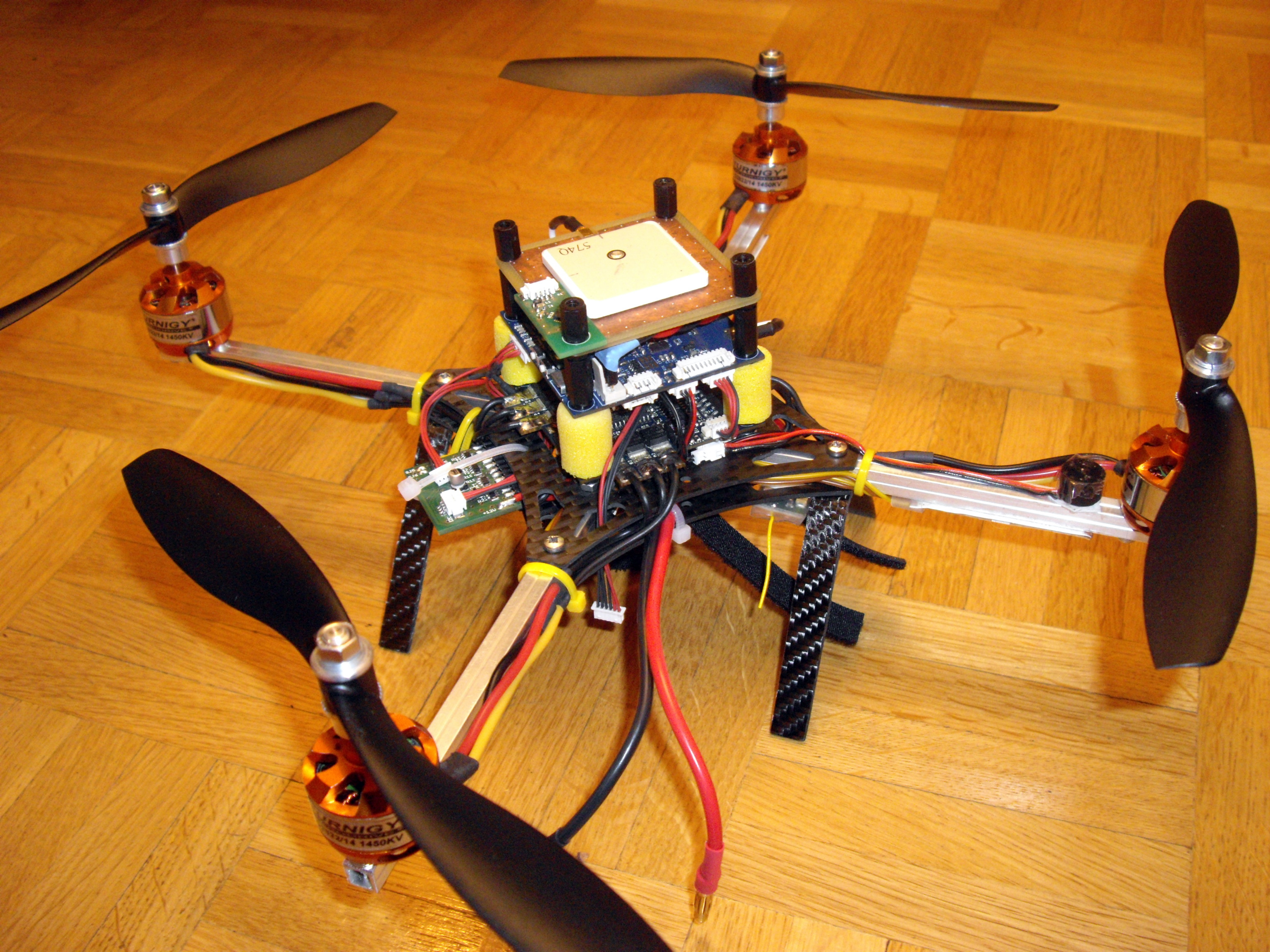

Pictures
 |  |
 |  |
