Alu38

Amir’s third NG

Description

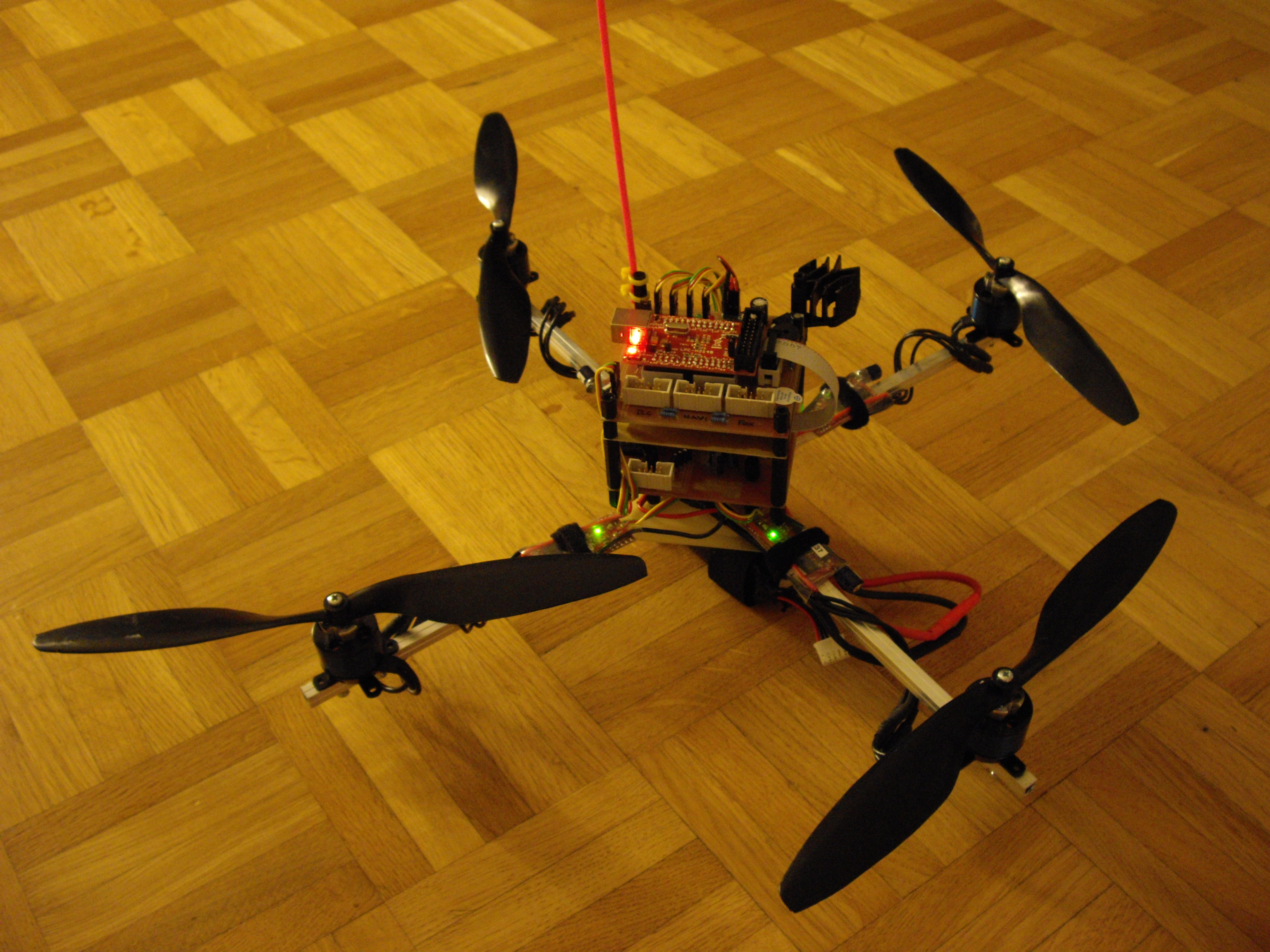

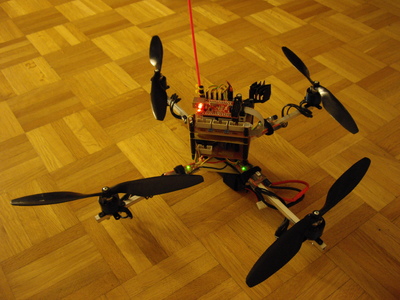

This is a small, very lightweight NG built for funflying. It’s my third NG and we tried to build it as light as possible. Currently it still uses power plugs but we will replace them and hope to reduce the weight by another 180g.

Specifications

||<tablestyle=“width: 95%">Maidenflight||10.06.2008|| ||HW Revision||HW-0.10|| ||Motors||4x Hacker 20-28 (clones)|| ||Controllers||4x Holger BL-Ctrl 1.1|| ||Total Weight||635g|| ||Frame Type||Alu-Cross 0.75cm|| ||Frame Weight||98g|| ||Frame Span||38cm|| ||Batteries||Powerquest 30-50C 1200mAh, 2000mAh, 3200mAh||

Pictures

Movies

Amir’s maiden flight of his new 38cm NG on the 10.06.2008

Go to the Vimeo page of this movie.

Taarek’s outdoor flight with Amir’s new NG on a 38cm frame on the 14.06.2008

Go to this video’s Vimeo page
