Welcome to the Next Generation Multicopter

What’s the NG?

This is a open source community project to build a modern autonomously flying Multicopter.

New: 2.4GHz Diversity NG Video PCB boards available!

Attention:: *If you are planing to order the electronic parts, please look at the HW-0.22 Partlist quite often!

The parts, their availability and distributors may have beeen updated!*

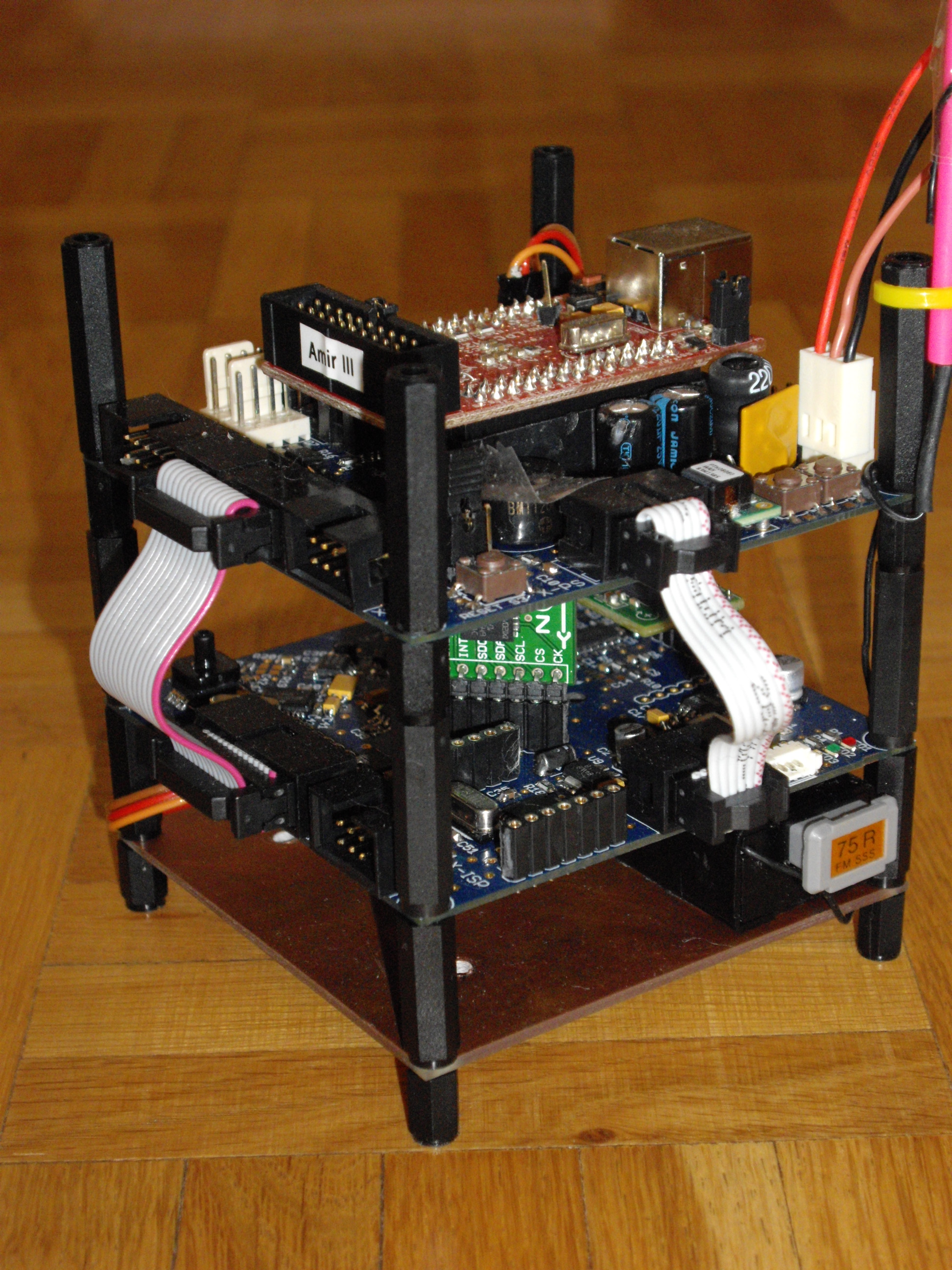

Nine HW-0.10 prototypes were flying in summer 2008. Since the 25c3 - The CCC Congress in Berlin twenty-five HW-0.20 prototypes were produced and were tested by our Beta-Testers. We received a lot of feedback and bug reports which we incooperated into the newer NGOS versions and into the next hardware revision called HW-0.21. Thirty final HW-0.21 prototypes were produced and tested in sommer 2009. We did small changes in the print and design and incoperated them into HW-0.22. HW-0.22 was produced in bigger quantity in preparation of the first public release. At the 26c3 - last years CCC Congress in Berlin - we did a first public hardware release of HW-0.22. The HW-0.22 PCB are now available in our Shop.

Note:: This is a community development project and no nice and shiny finished product!

Please be aware that the NG Multikopter Project and the old UAVP Project are fully independant projects with different developers and different philosophy. The NG has a new, very different software and hardware design!

Having more and more vistors from China we would like make a political statement here:
Fight to free Tibet! 自由西藏! Free speech to everyone! Stop Internet censoring now!

We would also like to send our congratulations to Liu Xiaobo, a Chinese dissident who was sentenced to 11 years in prison in December for writing a manifesto calling for freedom of expression and multiparty elections, who won the Nobel Peace Prize Award 2010!

Please make sure to support Wikileaks and Julian Assange!

For more information check out the new NG Board, the Features list and the News page. On the PlanetNG page you will find an aggregation of all known NG blogs and on the PlanetMC page you will find an aggregation of all known quadcopter blogs. On the pages Pictures and Videos you can find different multimedial impressions of our work, of the flights done and of some meetings. Be sure to check out the UserCopters page as well, where you will find pictures and specifications of already airborne NGs. In the Download section you will find all software releases.

Be sure to read through our Documentation. You can buy the needed PCB in our Shop.

Events

The next events sorted by date:

News

The Next Generation Multicopter

The latest News

The latest NG News sorted by date:

There is also more Older News.

Other language

Please note that there is a german News page: Neuigkeiten.

Highlights

Ygramul’s NG FPV impressions on the 22.08.2010

Thrust/Weight is still at about 2/1. Used amir-ng controller and quadX hal.

For more information see my thread in the NG Forum.

Go to Vimeo Site of this video.

Ygramul’s dynamic NG FPV flight on the 22.08.2010

Try to fly my NG a little bit more dynamic with ACC mode. Unfourtanly my NG is also still to heavy for it’s motor/prop combination. For more information see my thread in the NG Forum.

Go to Vimeo Site of this video.

First GPS Position Hold flight on the 24.06.2010

This shows the very first GPS Position Hold flight of our new DCM based flight controller with Kalman Drift compensation in SO(3), the manifold of the special orthogonal group of rotations.

To Vimeo Site of this Video.

Maidenflight of the new DCM based Controller with Kalman Drift Compensation in SO(3) on the 16.06.2010

This shows the first flight of our new DCM based flight controller with Kalman Drift compensation.

To the Vimeo Site of this Video.

Amir’s first sunny flight this year on the 24.03.2010

Go to this video’s Vimeo page

Winter Moves - MiniMikro’s Hardware 0.22, 04.01.2010

RoKoNG

Hardware 0.22

4x Hacker Clone

EPP 1045

Gehe zur Vimeo Seite dieses Films.

Servo Attitude Compensation Demonstration on the 16.11.2009

Here the two servos are attached to the RC-Controller which receives attitude information from the flight control by NGPP - The NG Peripherial Protocol.

NGPP is a register based access protocol allowing direct memory access on the slave device similar to MODBUS. The RC-Controller does attitude compensation on two defined servo outputs of the five available ones.

Go to Vimeo Site of this video.

Example of a NGPP access from the NGOS:

# show ngpp rcctrl

NGPP rc-ctrl registers:

  rc.devices          3
  rc.ngos.ver        54
  rc.ngos.rev      3997
  rc.nick             0
  rc.roll             0
  rc.yaw              0
  rc.nick.corr        0
  rc.roll.corr        0
  rc.yaw.corr         0
  rc.servo.nick       1
  rc.servo.roll       2
  rc.servo.opmode     0
  rc.servo1           0
  rc.servo2           0
  rc.servo3           0
  rc.servo4           0
  rc.servo5           0
  rc.dsl0.rssi      161
  rc.dsl0.ch0       135
  rc.dsl0.ch1         1
  rc.dsl0.ch2         2
  rc.dsl0.ch3         2
  rc.dsl0.ch4       135
  rc.dsl0.ch5         2
  rc.dsl0.ch6       134
  rc.dsl0.ch7       212
  rc.dsl0.ch8       132
  rc.dsl0.ch9       227
  rc.dsl1.rssi        0
  rc.dsl1.ch0         0
  rc.dsl1.ch1         0
  rc.dsl1.ch2         0
  rc.dsl1.ch3         0
  rc.dsl1.ch4         0
  rc.dsl1.ch5         0
  rc.dsl1.ch6         0
  rc.dsl1.ch7         0
  rc.dsl1.ch8         0
  rc.dsl1.ch9         0
  rc.test1            0
  rc.test2            0
