Part Lists for the NGBLC-4mini-r1 and NGBLC-4mini-r2

/!\ This is work in progress and preliminary information /!\

Notes and History

TODO

  • Testing the maximum current
  • Testing buffer capacitors
  • Testing current limiting
  • Convert code to C

History:

  • 27.09.2012: v0.01; first version of partlist
  • 19.10.2012: v0.02; C103,R38 removed double entry; added C36; changed X100,X101,X102,X103 to 6 pin; added distibutor alternatives
  • 07.12.2012: v0.03; C3,C31 alternative; added distibutor alternatives
  • 18.11.2013: /!\ ATTENTION /!\ see “Blocking Capacitor”. Use higher voltage resistance!

Description

NGBLC-4mini

Empty PCBs

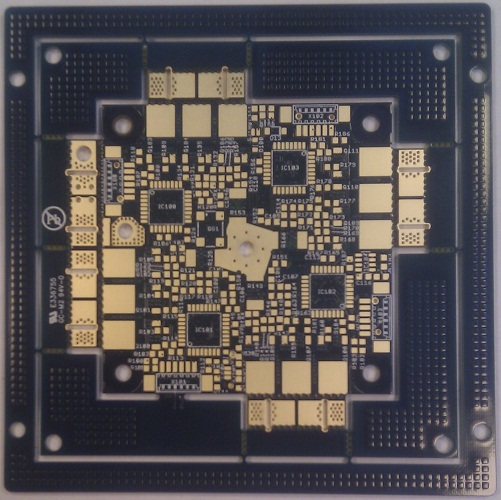

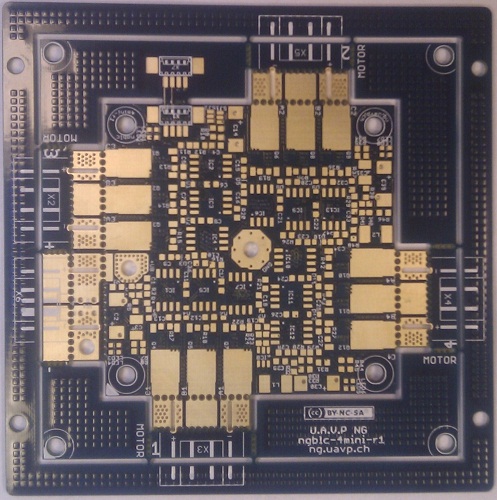

attachment:IMAG0785.jpg attachment:IMAG0786.jpg

Frame and Connector Options


Option 1Use the 80 x 80 mm outer frame to put the BLC together with our HW0.22 FC and SB.

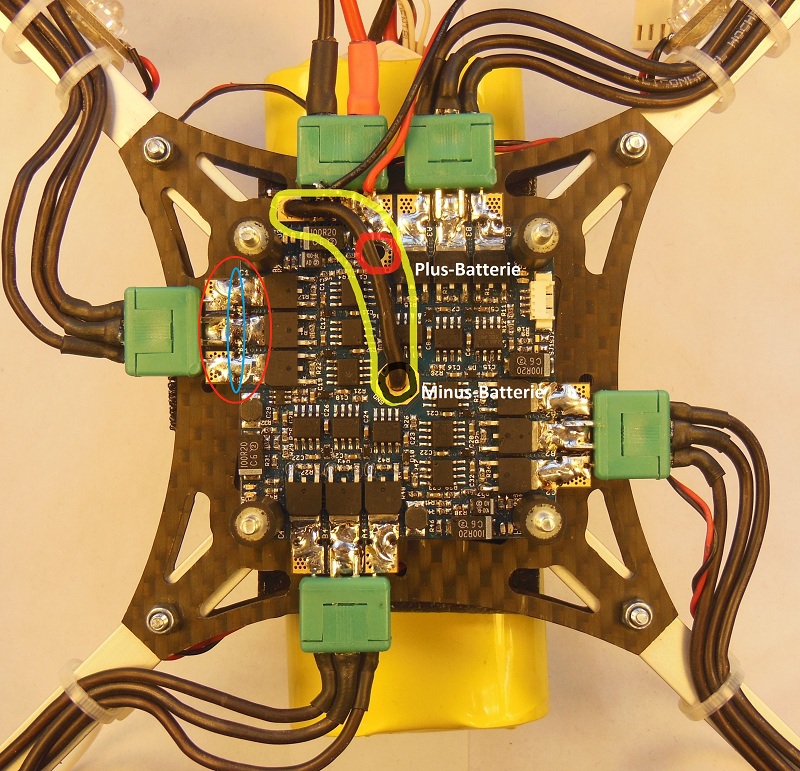

Option 2Use pad extensions at the HEXFETs together with MULTIPLEX power connectors or 3,5 mm gold connector. Be shure to enforce the pads over the breaking holes with solder to enable high current (red area). Connect the outer minus via to the middle via with a thick cable (yellow area).
Option 3Use NGBLC-4mini with the same size like out Flight Control which is 56 x 56 mm. Cut the bleaking holes (blue area). Motor cable have to be soldered directly to the pads at top side HEXFETs. Battery cable have to be soldered direct to Minus-Batterie (black) and Plus-Batterie (red).

Hints only for faulty NGBLC-4mini-r1

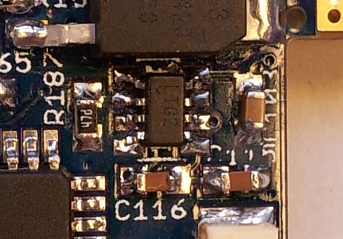

On NGBLC-4mini-r1 there is a wrong package for IC104. You have to fit the pins like this. PIN 1 is to the left top. The chip has a small arrow \/ there.attachment:20121012_144859.jpgattachment:20121108_144453.jpg

Jumper and Options

I2C vs. UART
I2C FC connection to BLCSJ1, SJ2bridge 1 to 2 (Pad 1 is to the edge of the board)
UART FC connection to BLCSJ1, SJ2bridge 2 to 3 (Pad 3 is to the middle of the board)
Power Supply
5V from internal Power Supply (controlled by 5V from FlightControl)SJ100openSJ101bridge 2 to 3D101, D1021N4148
5V from internal Power Supply (allways on) If SJ100 is closed, be sure SJ101 and D101,D102 are open!SJ100closedSJ101openD101, D102open
5V from FlightControlSJ100openSJ101bridge 1 to 2D101, D1020R
Resulting default settings for NGBLC-4mini attachted to HW0.22-mini or HW0.24-mini should be
SJ1, SJ2bridge 1 to 2
SJ100open
SJ101bridge 2 to 3
D101, D1021N4148
Blocking Capacitor
/!\ ATTENTION /!\ We recommend to use higher voltage resistance for tantalum capacitors than formerly recommended! In some cases we had burning tantalum capacitors. These are more risky with voltage resistance and high currents at battery connection than aluminum capacitors. You are safer to use aluminum capacitors or choose higher voltage resistance on tantalum. Using higher cell numbers is on your own risk!
C2, C14, C30, C35<= 5S LiPo batteryCAP ALUM 330UF 25V RADIAL
C2, C14, C30, C35<= 3S LiPo batteryCAP TANT 100UF 20V SMD
C2, C14, C30, C35<= 2S LiPo batteryCAP TANT 220UF 16V SMD

Flashing

As software for compiling and flashing i am using Atmel AVR Studio 4 (don’t use version 5, only trouble)

Download AVR Studio 4 - Registration needed

As programming device you may use Atmel AVR Dragon or USBprog. Mine is USBprog 3.0

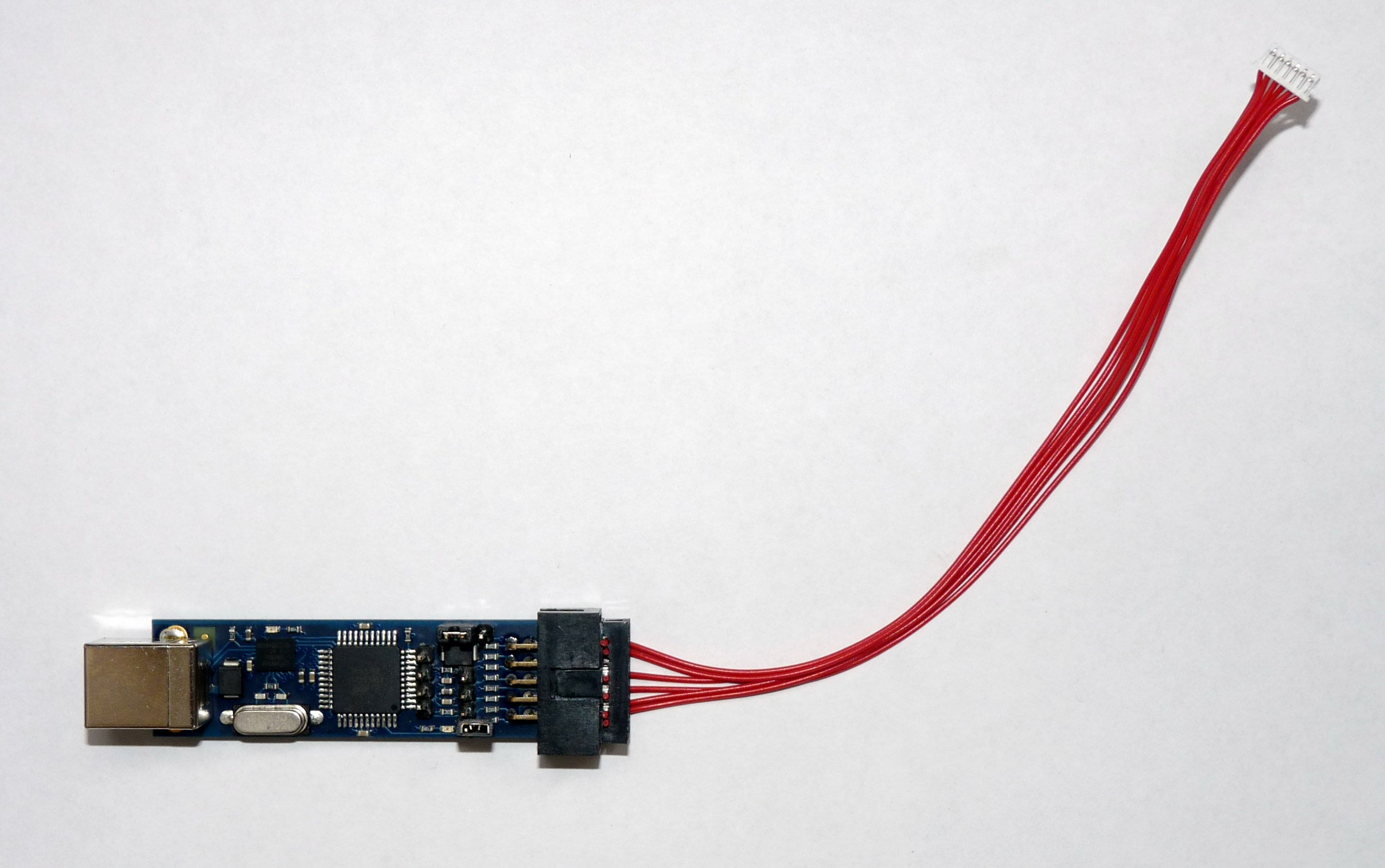

USBprog Hardware

USBprog

Cable
/!\ The configuration has changed from r0 to r1/r2

Signal10pin female connector6pin Picoblade connector
MOSI13
VCC21
RESET55
SCK74
MISO92
GND106

Software Hex Files

Quax firmware (stable)

attachment:bl-4428_M1.hex attachment:bl-4428_M2.hex attachment:bl-4428_M3.hex attachment:bl-4428_M4.hex

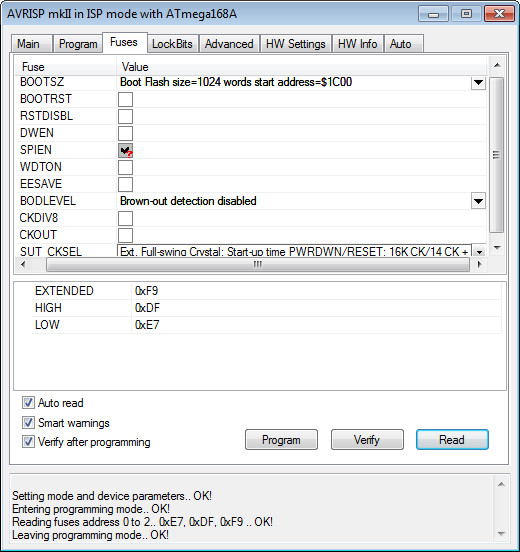

Fuses of the ATMEGA168 for Quax firmware

Fuses

SimonK firmware (better than Quax, but does not run with all motor types)

attachment:tgy_M1.hex attachment:tgy_M2.hex attachment:tgy_M3.hex attachment:tgy_M4.hex

program simonk with avrdude: avrdude -p m168 -c avrispmkII -P usb -U tgy_M1.hex -u -U lfuse:w:0xd0:m -U hfuse:w:0xdd:m efuse:w:0xf9:m

Software Source

tbd

The NGBLC-4mini Part List

/!\ Do NOT edit the tabular data on this page! The master is the Excel file below!

/!\ This is work in progress and preliminary information /!\

The PartList as Excel (.xls) file: attachment:partlist-ngblc-4mini-r1-v0.03.xls

~-

NamePart / ValueDescriptionPackageInfoQuan tityMin. OrderDistributorOrder NumberPriceSumAlternaltive DistributorOrder NumberAlternaltive DistributorOrder NumberAlternaltive DistributorOrder NumberAlternaltive DistributorOrder NumberAlternative Sum
attachment:150x1.jpgattachment:150x1.jpgattachment:150x1.jpgattachment:150x1.jpgattachment:150x1.jpgattachment:20x1.jpgattachment:20x1.jpgattachment:100x1.jpgattachment:100x1.jpgattachment:50x1.jpgattachment:50x1.jpgattachment:100x1.jpgattachment:100x1.jpgattachment:100x1.jpgattachment:100x1.jpgattachment:100x1.jpgattachment:100x1.jpgattachment:100x1.jpgattachment:100x1.jpgattachment:50x1.jpg
C1, C4, C5, C6, C7, C8, C9, C10, C11, C12, C13, C15, C16, C17, C18, C19, C20, C21, C22, C23, C24, C25, C26, C27, C28, C32, C33, C34, C36, C100, C101, C102, C104, C105, C106, C107, C108, C109, C110, C113, C114100nCAP CER 0.1UF 50V 10% X7R 0603SMD 060341100Digikey311-1344-1-ND0,01 €1,26 €ReicheltX7R-G0603 100NFarnell1759016Distrelec823499
C115, C116220nFCAP CER 0.22UF 50V 10% X7R 0603SMD 060322Digikey445-7408-1-ND0,16 €0,38 €Farnell1856336Distrelec823502
C2910nCAP CER 10000PF 50V 10% X7R 0603SMD 0603Optional, for 5V Voltage Regulator110Digikey311-1085-1-ND0,03 €0,32 €ReicheltX7R-G0603 10NFarnell1759003Distrelec831932
C103, C1111µ/25VCAP CER 1UF 25V 10% X5R 0603SMD 0603Optional, for 5V Voltage Regulator22Digikey490-3897-1-ND0,11 €0,26 €ReicheltX5R-G0603 1,0/25Distrelec838359
C11210µCAP CER 10UF 6.3V 20% X5R 0603SMD 0603Optional, for 5V Voltage Regulator11Digikey490-3896-1-ND0,37 €0,44 €ReicheltX5R-G0603 10/6Distrelec833163
C3, C31100µ/6,3VCAP TANT 100UF 6.3V 10% 1411SMD 141122Digikey718-1128-1-ND0,79 €1,88 €Distrelec812121
C3, C31100µ/10VCAP TANT 100UF 10V 10% 1411SMD 1411Alternativ, more voltage reliable2Digikey478-5801-1-ND1,19 €TME backorderTAJB107M010R1,29 €
C2, C14, C30, C35220µ/16VCAP TANT 220UF 16V 10% 2917SMD 2917Alternativ for 3S Lipos4Digikey718-1498-1-ND2,83 €
C2, C14, C30, C35100µ/20VCAP TANT 100UF 20V 10% 2917SMD 2917Alternativ for 4S Lipos44Digikey718-1774-1-ND1,63 €7,76 €TME backorderTPSD107K020R00854,41 €
C2, C14, C30, C35330µ/25VCAP ALUM 330UF 25V 20% RADIALRM3,5Pinned alternativ for higher capacity and voltage4DigikeyP12387-ND0,43 €
D1, D2, D3, D4, D5, D6, D7, D8, D9, D10, D11, D12BAS316DiodeSOD323Alternativ BAS16J1212Digikey568-5003-1-ND0,19 €2,71 €Distrelec603282TMEBAS16HT1G0,52 €
D13MBR0530DiodeSOD323Optional, for 5V Voltage Regulator11DigikeyMBR0530TPMSCT-ND0,36 €0,43 €Distrelec600926
D100, D101, D1021N4148DiodeSOD323Optional, for 5V Voltage Regulator
D101, D102 needed when SHDN Signal from FC is used, else bridge with 0R		33Digikey1N4148WSFSCT-ND0,13 €0,46 €Distrelec603889
IC1, IC2, IC3, IC4, IC5, IC6, IC7, IC9, IC10, IC11, IC12, IC13IR2304Half-Bridge-DriverSO8-2Alternatively you can use IRS23041212DigikeyIR2304SPBF-ND1,08 €15,48 €Farnell1023256Distrelec662183
IC8LT1616Step-Down Switching RegulatorSOT-23-06Optional, for 5V Voltage Regulator11DigikeyLT1616ES6#TRMPBFCT-ND4,31 €5,13 €Distrelec640404TME backorderLT1616ES63,27 €
IC104LT3464Micropower Boost RegulatorSOT-23-0811DigikeyLT3464ETS8#TRMPBFCT-ND3,38 €4,02 €
IC100, IC101, IC102, IC103MEGA48/88/168-AUIC MCU AVR 16K FLASH 32TQFPTQFP32-0844DigikeyATMEGA168A-AU-ND2,10 €10,00 €Distrelec645165TMEATMEGA168PA-AU5,85 €
L110uH/1AInductivitySMD 1812Optional, for 5V Voltage Regulator11DigikeySDR0403-100MLCT-ND0,36 €0,43 €ReicheltL-PISG 10µDistrelec353713
L222uH/1AInductivitySMD 181211DigikeySDR0403-220MLCT-ND0,36 €0,43 €ReicheltL-PISG 22µDistrelec353856
LED1, LED3, LED5, LED8LEDCHIP-LED0603LED greenLED060344Digikey754-1121-1-ND0,14 €0,67 €ReicheltSMD-LED 0603 GNDistrelec251947
LED2, LED4, LED6, LED7LEDCHIP-LED0603LED redLED060344Digikey754-1117-1-ND0,14 €0,67 €ReicheltSMD-LED 0603 RTDistrelec251948
Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8, Q9, Q10, Q11, Q12, Q100, Q101, Q102, Q103, Q104, Q105, Q106, Q107, Q108, Q109, Q110, Q111IRLR7843MOSFET N-CH 30V 161A DPAKTO2522425DigikeyIRLR7843PBFCT-ND1,05 €31,24 €Distrelec605328TMEIRLR7843PBF15,47 €
QG1Oscilator 16 MHzOSC 16MHZ 5.0V7x5mm11DigikeyCTX270CT-ND1,60 €1,90 €Bürklin77 D 7028Distrelec667110 (prüfen)
X1, X7Molex 4pinMolex Picoblade Connector53261-04X7 optional11DigikeyWM7622CT-ND1,30 €1,55 €Distrelec116863TMEMX-53261-04710,82 €
X100, X101, X102, X103Molex 6pinMolex Picoblade Connector53261-06X7 optional44DigikeyWM7624CT-ND1,42 €6,76 €Distrelec116865TMEMX-53261-06712,24 €
R125, R149, R153, R1660R01SMD Presicion Resistor 2512 0R010, 3,0 W, 1,0 %, TK 50SMD 251244DigikeyCRA2512-FZ-R010ELFCT-ND0,42 €2,00 €Bürklin09 E 402Distrelec715208
R13, R14, R15, R17, R18, R19, R22, R25, R27, R36, R42, R43, R103, R104, R105, R109, R135, R140, R157, R159, R160, R168, R177, R1794724100Digikey311-47.0HRCT-ND0,01 €0,64 €Distrelec728181
R5, R31, R47, R102, R107, R110, R112, R113, R126, R150, R151, R152, R181, R182, R183, R185, R18610017100Digikey311-100HRCT-ND0,01 €0,64 €Distrelec728189
R7, R8, R34, R35, R44, R45, R100, R101, R123, R141, R147, R155, R1691k13100Digikey311-1.00KHRCT-ND0,01 €0,64 €Distrelec728213
R1, R32, R46, R119, R121, R122, R130, R132, R133, R138, R142, R143, R146, R170, R171, R1734k716100Digikey311-4.70KHRCT-ND0,01 €0,64 €Distrelec728229
R24, R108, R111, R114, R136, R137, R145, R180, R18410kR24 optional, for 5V Voltage Regulator9100Digikey311-10.0KHRCT-ND0,01 €0,64 €Distrelec728237
R2, R3, R4, R6, R9, R10, R11, R12, R16, R20, R21, R26, R28, R29, R30, R33, R37, R39, R40, R41, R106, R115, R116, R117, R118, R120, R124, R127, R128, R129, R131, R134, R139, R144, R148, R154, R156, R161, R162, R163, R164, R165, R167, R172, R174, R175, R176, R17822k48100Digikey311-22.0KHRCT-ND0,01 €0,64 €Distrelec728245
R2330kOptional, for 5V Voltage Regulator11DigikeyRMCF0603FT30K0CT-ND0,03 €0,04 €Distrelec728248
R3833k11DigikeyRMCF0603FT33K0CT-ND0,03 €0,04 €Distrelec728249
R158100kOptional, for 5V Voltage Regulator11DigikeyRMCF0603FT100KCT-ND0,03 €0,04 €Distrelec728261
R187300k11DigikeyRMCF0603FT301KCT-ND0,03 €0,04 €Distrelec728272
R483,3M11DigikeyRMCF0603FT3M30CT-ND0,03 €0,04 €Distrelec728443
51021-0400Molex Picoblade Connectoroptional I2C Connector1Distrelec116877
51021-0600Molex Picoblade Connectoroptional ISP Connector1Distrelec116879
MPX ConnectorMultiplex Battery Connectoroptional5
Totals100,21 €Totals combined
Digikey + TME		68,95 €

-~
