Part Lists for the NG Hardware 0.22-mini-r1

/!\ This is work in progress and preliminary information /!\

Notes and History

TODO

• Descriptions, Mounting Options, Hints
• Accessories

History:

• 28.03.2011: Excel sheet generated, alpha version
• 05.04.2011: First Wiki Table Version, beta v0.04
• 07.04.2011: Links corrected, beta v0.05
• 21.04.2011: added R33, R41, R48 beta v0.06
• 03.05.2011: change R2, R5 (PushButtonController), R15, R18 (new HW-ID), R15, R30, R31, R36, R37, R39, R40, R42, R43 (16k->15k)
• 14.05.2011: Annotations
• 23.05.2011: quantity correction 10M
• 26.05.2011: IC7,IC8 package description
• 26.10.2011: corrected Digikey links

Introduction

The following tables list the electronic parts needed to populate the various PCBs of the HW-0.22-mini-r1 hardware. At the moment there are six PCBs:

• Mainboard + 2 Gyro breakouts
• Alternative switch mode voltage regulator (optional)
• JTAG adapter (optional)
• RC/CAM-Controller (optional)

Hints

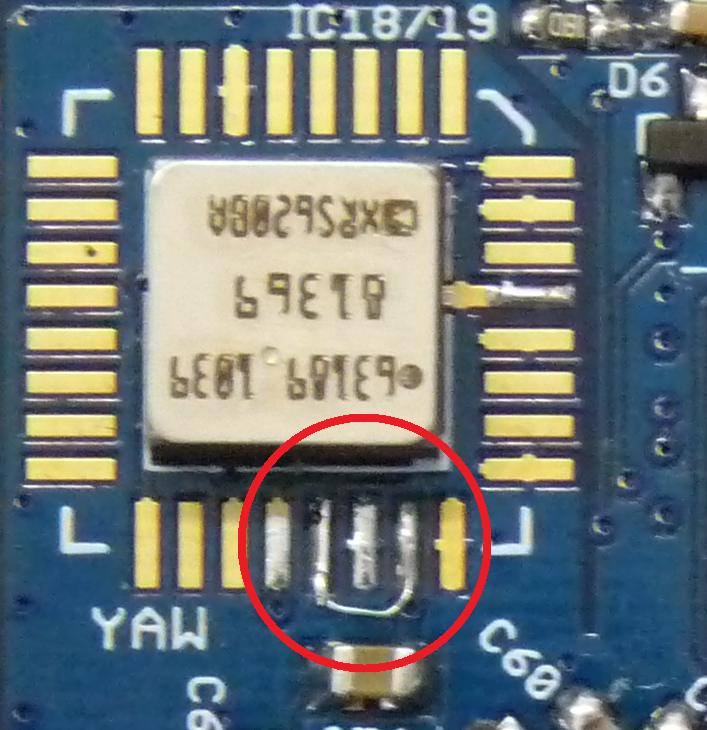

ADXRS620 Bug in PCB

If you whish to use ADXRS620 gyros, you have to do a fix on the mainboard and the gyro breakout boards. For each gyro you have to connect pin 25 to pin 27 of the MLX pads. This is necessary because Vratio of the ADXRS620 has to be connected to Vcc. Do this with a very thin wire or use an SMD resistor 0R.

.

Mainboard

• TODO: Selecting Switch Mode Regulator (PTH08080W vs Alternative)
• TODO: Connector Pinouts

Alternative switch mode voltage regulator

This is an experimental alternative for the TI PTH08080W module for supplying 5V on the mainboard from the battery voltage. At the moment the original TI PTH08080W is recommended because it is cheaper.

JTAG Adapter

The JTAG Adapter converts the Molex PicoBlade connector on the mainboard to a standard 20-Pin ARM JTAG connector and includes a reset button.

RC/CAM-Controller

• TODO: Description

Accessories

• 0603 SMD Resistor Kit
• Molex Picoblade connectors / Kit & Pigtails
• …

Setting the Jumpers

SJ1 UART0 power supply

Depending on what serial device or serial PC adapter is connected you need or need not supply power to the serial device. For serial PC adapter there should not be supply needed. SJ1 may be open. Other devices may depend on power supply. Select the right voltage (left and right is seen in the direction of the name print).

5V = bridge middle to the left pad

3,3V = bridge middle to the right pad

SJ3 UART1 power supply

5V = bridge middle to the left pad

3,3V = bridge middle to the right pad

SJ2 Battery Monitoring

Bridge to enable battery monitoring. Leave open or adjust voltage divider when using more than 4 Lipo cells

Selecting Undervoltage Lockout resistors R2, R5

The Undervoltage Lockout on our push button controller has the purpose to prevent deeply discharging of the Lipo battery when electronics is not disconnected. Because we have no mechanical switch, you have to prevent every current from the battery when voltage is below a certain level. This will also stop motors and the QC will fall down when flying. You have to set “Low Battery” configuration value and hear on your beeper to land early. Or you have to disable Undervoltage Lockout: R2 = 100k, R5 not mounted.

R2 and R5 are dependent on your Battery:

The HW-0.22-mini-r1 Part List

/!\ Do NOT edit the tabular data on this page! The master is the Excel file below!

/!\ This is work in progress and preliminary information /!\

The PartList as Excel (.xls) file: attachment:partlist-hw0.22-r1-mini-v0.10.xls

-

Name	Part / Value	Description	Package	Info	Quan tity	Min. Order	Distributor	Order Number	Price	Sum
NG Mini + Breakouts
R20	150k	Resistor SMD	SMD 0603	 	1   	 	Family Pack 0603
R1	100k	Resistor SMD	SMD 0603	 	1   	 	Family Pack 0603
R50	47k	Resistor SMD	SMD 0603	 	1   	 	Family Pack 0603
R30, R31, R36, R37, R39, R40, R42, R43	15k	Resistor SMD	SMD 0603	<!> R43 print location wrong, it is second to IC11	8&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
R6, R13, R15, R16, R23, R32, R34, R35	10k	Resistor SMD	SMD 0603	R15 HW-ID 500mV voltage divider	8&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
R18, R21, R22, R27, R28, R29, R14, R47, R48, R49	1k8	Resistor SMD	SMD 0603	R18 HW-ID 500mV voltage divider	10&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
R24	1k	Resistor SMD	SMD 0603	&nbsp;	1&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
R4, R7, R8, R9, R10	330R	Resistor SMD	SMD 0603	&nbsp;	5&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
R3	180R	Resistor SMD	SMD 0603	&nbsp;	1&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
R11, R12, R17, R19, R25	100R	Resistor SMD	SMD 0603	&nbsp;	5&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
R26	10R	Resistor SMD	SMD 0603	&nbsp;	1&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
R33, R38, R41	10M	Resistor SMD	SMD 0603	&nbsp;	3&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
R2, R5	R2 100k <!> R5 do not mount!	Resistor SMD	SMD 0603	Undervoltage Detection, <!> see hints not activated, if R5 not mounted	1&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
C5	220µ	Aluminium El.Cap. THT RM 3,5 / 8	CPOL-EUE3.5-8	Buffer Cap.	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	RAD FC 220/35	0,26 €	0,26 €
C1	100µ/6V3	Aluminium El.Cap. SMD	&nbsp;	Buffer Cap.	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	VF 100/6,3 K-C	0,16 €	0,16 €
C14	22µ/10V	Ceramic Cap. SMD	SMD 1206	Buffer Cap.	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	X7R-G1206 22/10	0,31 €	0,31 €
C10, C12, C39, C54, C57, C74, C77	10µ/16V	Ceramic Cap. SMD	SMD 0805	Buffer Cap.	7&nbsp;&nbsp;&nbsp;	7&nbsp;&nbsp;&nbsp;	Reichelt	X5R-G0805 10/16	0,06 €	0,42 €
C17	4µ7/16V	Ceramic Cap. SMD	SMD 0805	Buffer Cap.	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	X7R-G0805 4,7/16	0,12 €	0,12 €
C6	4µ7	Ceramic Cap. SMD	SMD 0603	Filter/Timing Cap.	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	X5R-G0603 4,7/6	0,05 €	0,05 €
C11, C13, C18	2µ2/16V	Ceramic Cap. SMD	SMD 0603	Buffer/Filter Cap.	3&nbsp;&nbsp;&nbsp;	3&nbsp;&nbsp;&nbsp;	Reichelt	X7R-G0603 2,2/10	0,05 €	0,15 €
C33, C46, C47, C63	1u/16V	Tantalum Cap. SMD	SMD SMCA	Buffer Cap. <!> polarity print missing dash (+) to the center of the breakout, C46 to C47 print	4&nbsp;&nbsp;&nbsp;	4&nbsp;&nbsp;&nbsp;	Reichelt	SMD TAN.1,0/16	0,06 €	0,24 €
C20	470n	Ceramic Cap. SMD	SMD 0603	Filter/Timing Cap.	1&nbsp;&nbsp;&nbsp;	10&nbsp;&nbsp;&nbsp;	Digikey	445-1320-1-ND	0,04 €	0,50 €
C81, C83	220n	Ceramic Cap. SMD	SMD 0603	Filter Cap. <!> C81 print location wrong, it is next to IC11	2&nbsp;&nbsp;&nbsp;	10&nbsp;&nbsp;&nbsp;	Digikey	311-1346-1-ND	0,03 €	0,30 €
C2, C3, C4, C15, C16, C19, C25, C26, C27, C28, C29, C30, C31, C32, C34, C35, C36, C37, C38, C40, C45, C48, C49, C50, C51, C52, C53, C55, C56, C62, C64, C65, C66, C67, C68, C69, C73, C75, C76, C82	100n	Ceramic Cap. SMD	SMD 0603	Blocking/Filter Cap.	40&nbsp;&nbsp;&nbsp;	40&nbsp;&nbsp;&nbsp;	Reichelt	X7R-G0603 100N	0,05 €	2,00 €
C7, C8	33n	Ceramic Cap. SMD	SMD 0603	Timing Cap.	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Reichelt	X7R-G0603 33N	0,05 €	0,10 €
C42, C43, C44, C58, C59, C61, C70, C71, C72	22n	Ceramic Cap. SMD	SMD 0603	Filter Cap.	9&nbsp;&nbsp;&nbsp;	9&nbsp;&nbsp;&nbsp;	Reichelt	X7R-G0603 22N	0,05 €	0,45 €
C9	10n	Ceramic Cap. SMD	SMD 0603	Bypass Cap.	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	X7R-G0603 10N	0,05 €	0,05 €
C41, C60, C78	100p	Ceramic Cap. SMD X7R / NP0	SMD 0603	Filter Cap.	3&nbsp;&nbsp;&nbsp;	3&nbsp;&nbsp;&nbsp;	Reichelt	NPO-G0603 100P	0,05 €	0,15 €
C23, C24, C79, C80	18p	Ceramic Cap. SMD X7R / NP0	SMD 0603	Oscillator Cap.	4&nbsp;&nbsp;&nbsp;	10&nbsp;&nbsp;&nbsp;	Digikey	445-1272-1-ND	0,02 €	0,21 €
C21, C22	12p	Ceramic Cap. SMD X7R / NP0	SMD 0603	Oscillator Cap.	2&nbsp;&nbsp;&nbsp;	10&nbsp;&nbsp;&nbsp;	Digikey	445-1270-1-ND	0,02 €	0,23 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
L5	10µ	Inductor SMD	L-EU-PWRSD53	Filter Ind.	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	513-1457-1-ND	1,61 €	1,92 €
L2	4µ7	Inductor SMD	L-EU-PWRELL-VFG	Filter Ind.	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	LQH3C 4,7µ	0,14 €	0,14 €
L4	1µ	Inductor SMD	SMD 0805	Filter Ind.	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	L-0805AS 1,0µ	0,19 €	0,19 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
D4, D5	USBLC6-2SC6	Diode Array SMD	SMD SOT23-6	ESD Protection	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Digikey	497-5235-1-ND	0,77 €	1,83 €
D6	BAS40	Schottky Diode SMD	SMD SOT23	Boot/Reset Logic	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	BAS 40 SMD	0,08 €	0,08 €
D1	6T22A	Suppressor Diode SMD	SMD SMB	Input Protection	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	497-6491-1-ND	0,38 €	0,45 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
LED2, LED4	green	LED SMD	SMD 0603	Signaling LED	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Reichelt	SMD-LED 0603 GN	0,10 €	0,20 €
LED1, LED3	red	LED SMD	SMD 0603	Signaling LED	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Reichelt	SMD-LED 0603 RT	0,09 €	0,18 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
T1	IRF7205	P-Channel MOSFET SMD	SO8	Main Power Switch <!> Print missing, pin 1 to the name "T1"	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	IRF 7205	0,39 €	0,39 €
T2	BC817-16SMD	Transistor SMD	SOT23-BEC	Beeper Switch	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	BC 817-16 SMD	0,04 €	0,04 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
IC1	PTH08080W	SMPS Module	PTH08080W	Primary 5V Supply, see hints	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	296-20432-ND	8,27 €	9,84 €
IC2	LTC2950T	Pushbutton Controller	SOT23-8	On/Off Switch & UVLO	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	LTC2950CTS8-2#TRMPBFCT-ND	3,40 €	4,05 €
IC3	MCP1824S	Linear Regulator 3,3V	SOT223	3,3V Digital Supply	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	MCP1824ST-3302E/DBCT-ND	0,45 €	0,54 €
IC4	MCP1824S	Linear Regulator 5V	SOT223	5V Digital Supply	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	MCP1824ST-5002E/DBCT-ND	0,45 €	0,54 €
IC5	LT1763	Linear Regulator 5V	SO8	5V Analog Supply	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	LT1763CS8-5#PBF-ND	3,37 €	4,01 €
IC6	LPC2148	ARM7 MCU	TQFP64-10X10	Main MCU	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	568-1765-ND	11,37 €	13,53 €
IC7, IC8	P82B96DP	I2C Buffer / Driver	TSSOP8	&nbsp;	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Digikey	568-3197-1-ND	2,58 €	6,14 €
IC9	TMP36	Temperature Sensor	SOT23-5	Auxiliary Temp. Sensor	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	TMP36GRTZ-REEL7CT-ND	1,04 €	1,24 €
IC10	LIS3LV02DQ	Acceleration Sensor	QFNP28	Main Accelerometer	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	497-6346-1-ND	9,85 €	11,72 €
IC11	OPA333D	Operational Amplifier	SO8	Barometer LP-Filter <!> Print missing, bevelling to the name "IC11"	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	296-19545-5-ND	2,48 €	2,95 €
IC14	OPA4350	Operational Amplifier	SO14	Gyro LP-Filter	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	OPA4350UA-ND	9,04 €	10,76 €
IC15	AD7924	ADC	TSSOP16	Gyro ADC	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	AD7924BRUZ-ND	7,15 €	8,51 €
IC16	ADS1255	ADC	SSOP20	Barometer ADC	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	296-25897-1-ND	11,50 €	13,69 €
IC17	MPXH6115ASSOP	Pressure Sensor	MPXH6115ASSOP	Barometer	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	MPXH6115AC6T1CT-ND	8,51 €	10,13 €
IC17-alternative	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	Digikey	MPXH6115A6U-ND	7,43 €	&nbsp;
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
IC18, IC20, IC22	MLX90609	Gyro SMD	&nbsp;	Yaw, Roll, Nick Gyro	see hints	&nbsp;	Sander Elektronik	MLX90609EEA-R2	36,30 €	&nbsp;
IC19, IC21, IC23	ADXRS610	Gyro SMD	&nbsp;	Yaw, Roll, Nick Gyro	see hints	3&nbsp;&nbsp;&nbsp;	Sander Elektronik	ADXRS620BBGZ	28,80 €	102,82 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
Q1	MS5V	Quarz Crystal SMD	SMD MS5V	RTC Clock Source	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	32,768 MS5V-12,5	0,77 €	0,77 €
Q2	12MHz	Quarz Crystal SMD	SMD ABM3	ARM7 Clock Source	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	535-10634-1-ND	1,15 €	1,37 €
Q3	8MHz	Quarz Crystal SMD	SMD ABM3	ADC24 Clock Source	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	535-10630-1-ND	1,15 €	1,37 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
F1	MULTIFUSE-SM075	Polyfuse SMD	MULTIFUSE-SM0XX	&nbsp;	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	MF-SM075CT-ND	0,64 €	0,76 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
X1	53261-10	Molex Picoblade Connector	53261-10	JTAG Connector	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	WM7628CT-ND	1,54 €	1,83 €
X2	53261-03	Molex Picoblade Connector	53261-03	PPM Connector	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	WM7621CT-ND	1,02 €	1,21 €
X3	53261-02	Molex Picoblade Connector	53261-02	Beeper	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	WM7620CT-ND	0,83 €	0,99 €
X5, X6, X7	53261-04	Molex Picoblade Connector	53261-04	UART0, UART1, I2C Actor	3&nbsp;&nbsp;&nbsp;	3&nbsp;&nbsp;&nbsp;	Digikey	WM7622CT-ND	1,11 €	3,96 €
X8	53261-08	Molex Picoblade Connector	53261-08	I2C Aux.	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	WM7626CT-ND	1,35 €	1,61 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
SW1, SW2	Tyco FSMMSH 1977066-1	Pushbutton	1977066-1	On/Off, Reset/Bootloader	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Conrad	701765-05	0,63 €	1,26 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
BAT	Molex 22-23-2031	Battery Connector	22-23-2031	Battery Connector	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	WM4201-ND	0,43 €	0,51 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
Alternative SMPS	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
R46	86k	Resistor SMD	SMD 0603	&nbsp;	1&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
R45	20k5	Resistor SMD	SMD 0603	&nbsp;	1&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
R44	680R	Resistor SMD	SMD 0603	&nbsp;	1&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
C87, C88, C92	22µ/10V	Ceramic Cap. SMD	SMD 1206	Buffer Cap.	3&nbsp;&nbsp;&nbsp;	&nbsp;	Reichelt	X7R-G1206 22/10	0,31 €	&nbsp;
C85, C86	4µ7/50V	Ceramic Cap. SMD	SMD 1206	Buffer Cap.	2&nbsp;&nbsp;&nbsp;	&nbsp;	Reichelt	X7R-G1206 4,7/50	0,23 €	&nbsp;
C84, C89	10n	Ceramic Cap. SMD	SMD 0603	Filter Cap.	2&nbsp;&nbsp;&nbsp;	&nbsp;	Reichelt	X7R-G0603 10N	0,05 €	&nbsp;
C90	4n7	Ceramic Cap. SMD	SMD 0603	Filter Cap.	1&nbsp;&nbsp;&nbsp;	&nbsp;	Reichelt	X7R-G0603 4,7N	0,05 €	&nbsp;
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
L3	3µ3	Inductor SMD	L-EU-PWRSD53	SMPS Energy Storage	1&nbsp;&nbsp;&nbsp;	&nbsp;	Digikey	513-1454-1-ND	1,61 €	&nbsp;
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
D7	B340A	Switching Diode SMD	SMD SMA	SMPS Switch	1&nbsp;&nbsp;&nbsp;	&nbsp;	Digikey	B340A-FDICT-ND	0,38 €	&nbsp;
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
IC12	TPS54240	SMPS Voltage Regulator	POWERPAD_MSOP10	&nbsp;	1&nbsp;&nbsp;&nbsp;	&nbsp;	Farnell	1823858	8,74 €	&nbsp;
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
JTAG Adapter	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
R38, R39, R40, R41, R42, R43, R44, R45	10k	Resistor SMD	SMD 0603	Pull-up/down resistors	8&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
C52	100n	Ceramic Cap. SMD	SMD 0603	Supply blocking	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	X7R-G0603 100N	0,05 €	0,05 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
RESET	APEM PHAP3361	Pushbutton	CONRAD-700256	Reset button	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Conrad	700256	0,57 €	0,57 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
X1	ML20L	Pin header	ML20L	JTAG Connector	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	WSL 20W	0,31 €	0,31 €
X2	53261-10	Molex Picoblade Connector	53261-10	JTAG Connector	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	WM7628CT-ND	1,54 €	1,83 €
JP1	JP1E	Jumper, 2 Pin	JP1E	&nbsp;	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	SL 1x40G 2,54	0,14 €	0,14 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
RC/CAM-Controller	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
R10	47k	Resistor SMD	SMD 0603	Timing Resistor	1&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
R6, R7, R8, R9	4k7	Resistor SMD	SMD 0603	Pull-up/down resistors	4&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
R1, R2	3k9	Resistor SMD	SMD 0603	Optocoupler Bias Resistors	2&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
R3, R4, R5	depending on colour/LED	Resistor SMD	SMD 0603	5V LED Bias Resistors	3&nbsp;&nbsp;&nbsp;	&nbsp;	Family Pack 0603	&nbsp;	&nbsp;	&nbsp;
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
C5	220µ/6V3	Aluminium El.Cap. SMD	SMD	Buffer Cap.	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	VF 220/6,3 K-D	0,14 €	0,14 €
C4	10µ/16V	Ceramic Cap. SMD	SMD 0805	Buffer Cap.	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	X5R-G0805 10/16	0,06 €	0,06 €
C3, C6, C7, C8, C9	100n	Ceramic Cap. SMD	SMD 0603	Blocking/Filter Cap.	5&nbsp;&nbsp;&nbsp;	5&nbsp;&nbsp;&nbsp;	Reichelt	X7R-G0603 100N	0,05 €	0,25 €
C1, C2	18p	Ceramic Cap. SMD X7R / NP0	SMD 0603	XTAL loading capacitors	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Digikey	445-1272-1-ND	0,02 €	0,04 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
LED1	green	LED SMD	SMD 0603	Status LEDs	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Reichelt	SMD-LED 0603 GN	0,10 €	0,20 €
LED2	red	LED SMD	SMD 0603	Status LEDs	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Reichelt	SMD-LED 0603 RT	0,09 €	0,18 €
LED3	yellow	LED SMD	SMD 0603	Status LEDs	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Reichelt	SMD-LED 0603 GE	0,08 €	0,16 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
Q1	20Mhz	Quarz Crystal SMD	ABM3	Clock source	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	535-10641-1-ND	1,15 €	1,37 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
T1, T2, T3, T4	BCR133 replacement DDTC114ECA-7-F from Diodes	Transistor SMD	SOT23	Output driver/Inverter	4&nbsp;&nbsp;&nbsp;	4&nbsp;&nbsp;&nbsp;	Digikey	DDTC144ECA-FDICT-ND	0,31 €	1,48 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
OK1	ILD217T	Optocoupler SMD	SO8	&nbsp;	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	751-1313-1-ND	1,05 €	1,25 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
IC1	ATMEGA644P	AVR Microcontroller	TQFP44	&nbsp;	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	ATMEGA644P-20AU-ND	6,22 €	7,40 €
IC2	74HCT139D	Logic Gates SMD	SO16	Output logic	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Reichelt	SMD HC 139	0,19 €	0,19 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
X1	53261-08	Molex Picoblade Connector	53261-08	&nbsp;	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	WM7626CT-ND	1,35 €	1,61 €
X2, X3	53261-04	Molex Picoblade Connector	53261-04	&nbsp;	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Digikey	WM7622CT-ND	1,11 €	2,64 €
X4	53261-06	Molex Picoblade Connector	53261-06	&nbsp;	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	Digikey	WM7624CT-ND	1,18 €	1,40 €
JP1, JP2	PINHD-2X3V	Pin header, right angle	PINHD-2X3V	&nbsp;	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Reichelt	SL 2x50W 2,54	1,10 €	2,20 €
JP3	PINHD-2X2H	Pin header, right angle	PINHD-2X2H	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
Accessories	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
Connector, Cables, Family Packs	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
SMD Resistors 0603	&nbsp;	SMD Resistor Family Pack 0603	&nbsp;	&nbsp;	1&nbsp;&nbsp;&nbsp;	1&nbsp;&nbsp;&nbsp;	CSD	10-06FAME12	34,95 €	34,95 €
Picoblade Counterparts	53261-02	Molex Picoblade Connector	&nbsp;	&nbsp;	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Digikey	WM1720-ND	0,35 €	0,83 €
&nbsp;	53261-03	Molex Picoblade Connector	&nbsp;	&nbsp;	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Digikey	WM1721-ND	0,26 €	0,62 €
&nbsp;	53261-04	Molex Picoblade Connector	&nbsp;	&nbsp;	10&nbsp;&nbsp;&nbsp;	10&nbsp;&nbsp;&nbsp;	Digikey	WM1722-ND	0,31 €	3,70 €
&nbsp;	53261-06	Molex Picoblade Connector	&nbsp;	&nbsp;	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Digikey	WM1724-ND	0,45 €	1,07 €
&nbsp;	53261-08	Molex Picoblade Connector	&nbsp;	&nbsp;	4&nbsp;&nbsp;&nbsp;	4&nbsp;&nbsp;&nbsp;	Digikey	WM1726-ND	0,54 €	2,57 €
&nbsp;	53261-10	Molex Picoblade Connector	&nbsp;	&nbsp;	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Digikey	WM1728-ND	0,67 €	1,59 €
&nbsp;	06-66-0012	Molex Cable Pigtails	&nbsp;	&nbsp;	3&nbsp;&nbsp;&nbsp;	3&nbsp;&nbsp;&nbsp;	Farnell	1125272	12,26 €	43,77 €
&nbsp;	&nbsp;	Jumper 2,54mm	&nbsp;	&nbsp;	2&nbsp;&nbsp;&nbsp;	2&nbsp;&nbsp;&nbsp;	Reichelt	JUMPER 2,54GL SW	0,04 €	0,08 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
Totals	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	Totals	&nbsp;	339,87 €
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
ToDos	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
&nbsp;	NG Mini R14, R47, R48, R49 differs from eagle	update values in eagle files	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
&nbsp;	R2, R5 differ from eagle	update values in eagle files	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
&nbsp;	R3, R4 differ from eagle	update values in eagle files	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
&nbsp;	smps C91 missing	specify	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
&nbsp;	RC/CAM C1,C2,C5,R1,R2 differs from eagle	update values in eagle files	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;	&nbsp;
