Accelerometer

Documentation/Construction/Soldering/FlightControl/Sensorboard/Gyros/AccelerometerNext Section

Soldering the ACC

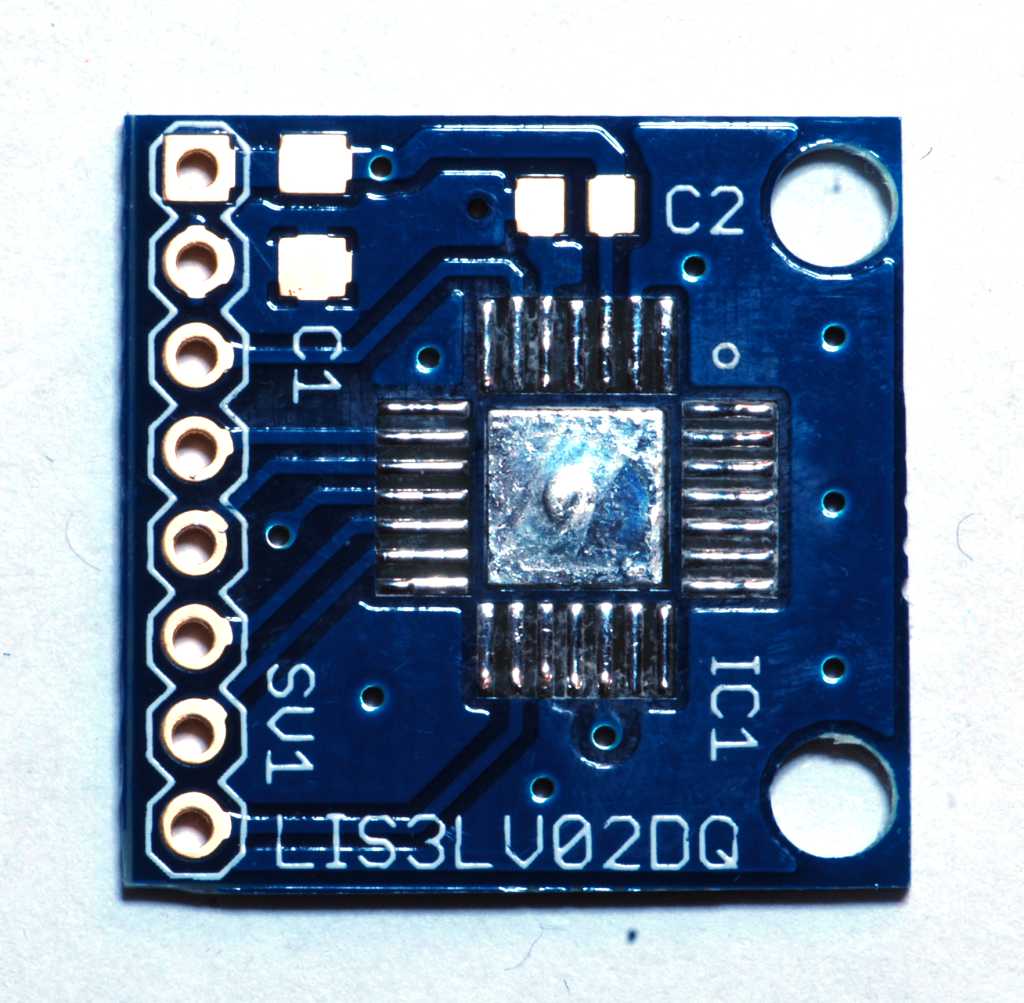

Picture of the blank board

picture of the blank acc board, prepared with solder

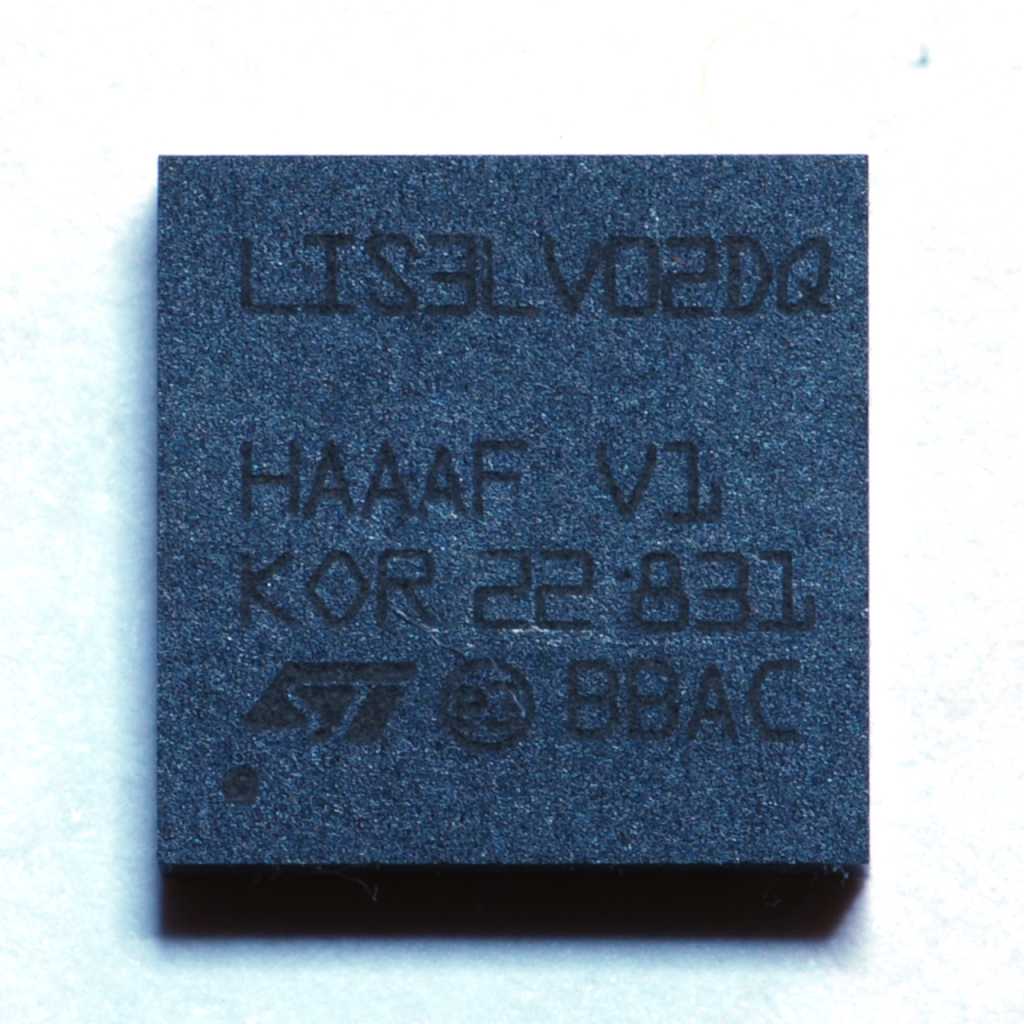

Pictures of the LIS3L Accelerometer

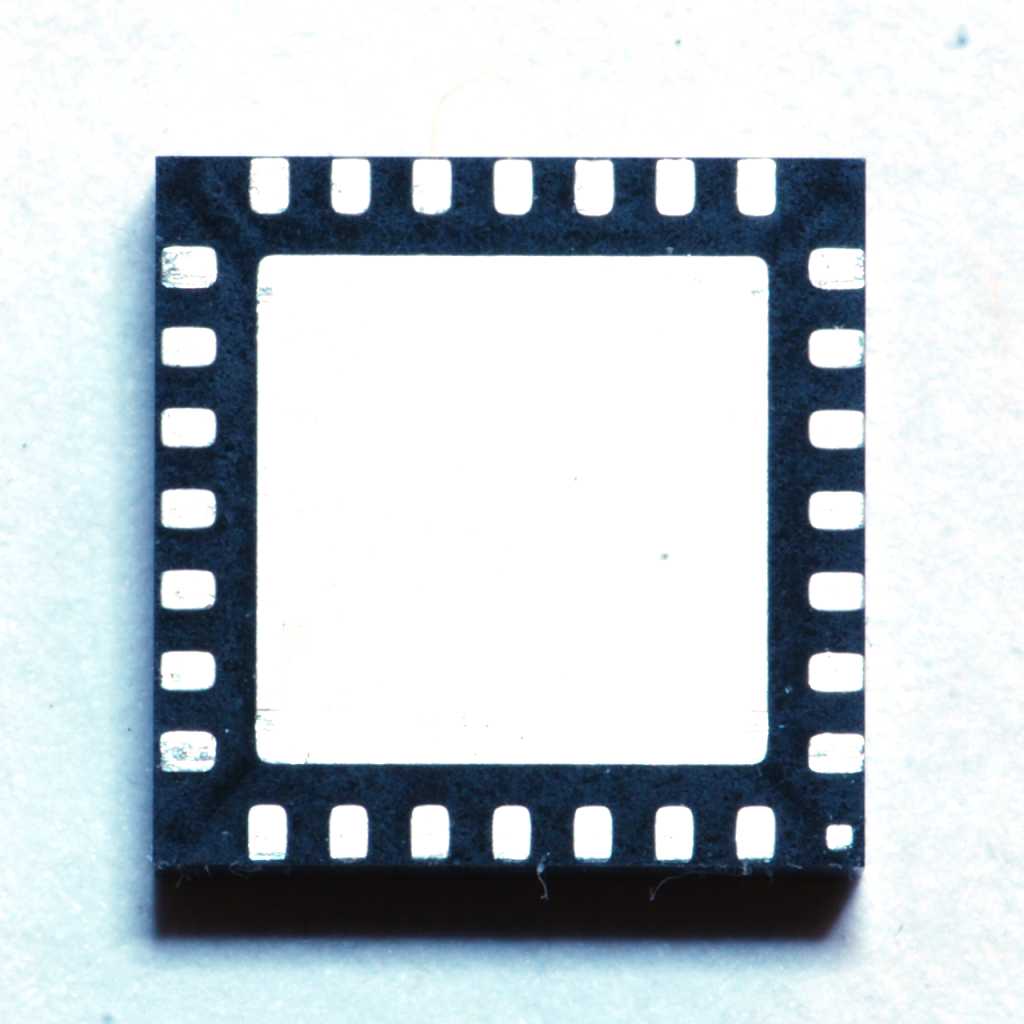

LIS3L Accelerometer top side LIS3L Accelerometer bottom side

Placing and soldering of the Accelerometer

It is possible to solder the LIS3L Accelerometer just with a cheap unregulated hot air gun, regular solder and smd flux. I prepared the pads of the board with a bit of solder.

picture of the blank acc board, prepared with solder

Then I glued the Acc on the board with lots of flux (again using the not-so-fluid edsyn fl22), placed it on a heat-resistant surface (bottom of an old cup) and heated it with the hot-air-gun.

The pictures below show the process. Note the position of the acc, and the part of solder on the right side of the board.

acc placed on board, heating

Acc placed on board, heating slowly from a distance and waving the hot air gun around to get a equal heat-distribution.

first movement

Acc is slowly sinking into the solder.

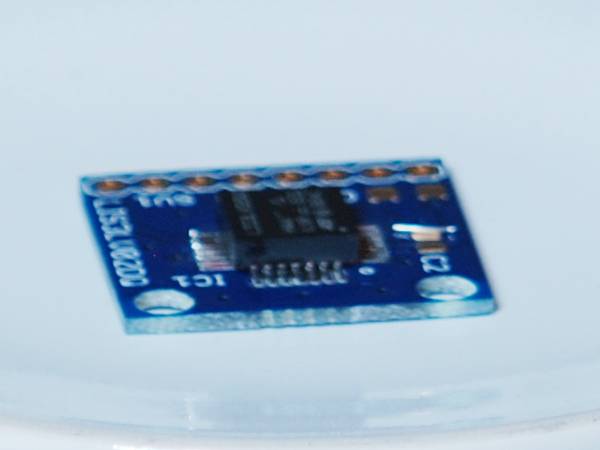

pads have contact

The pads on the edges have contact. The red on the pads left and right from the Acc are reflections of the heating wires of my hot air gun.

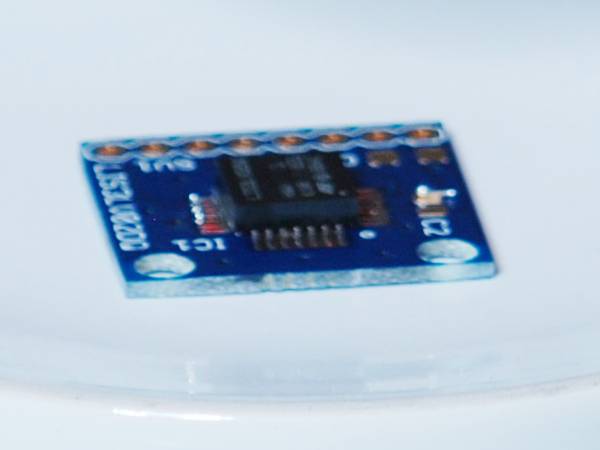

acc soldered

Only after the acc has settled, the piece of solder starts melting.

Results

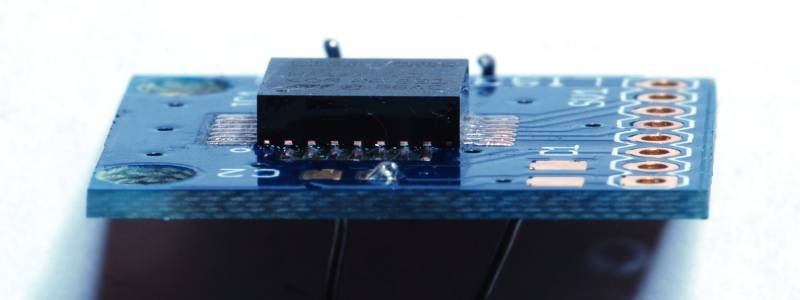

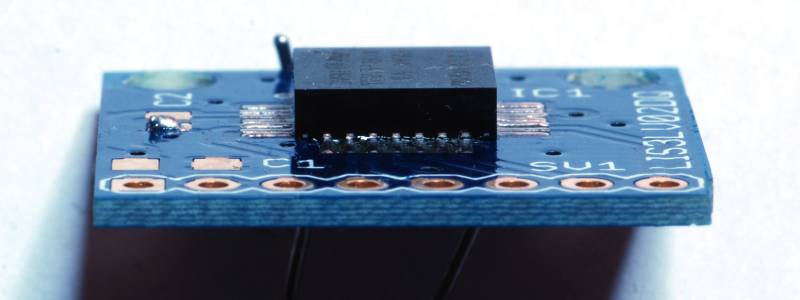

one side of the soldered acc board second side of the soldered acc board

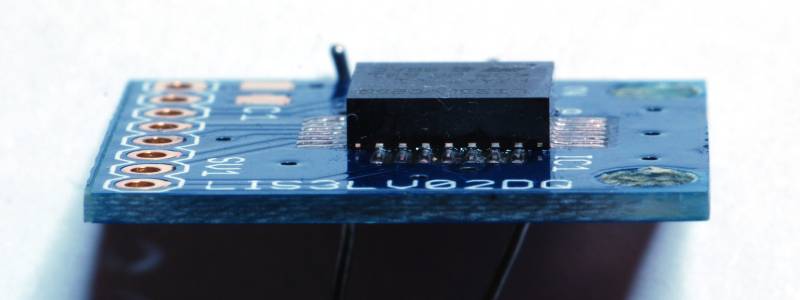

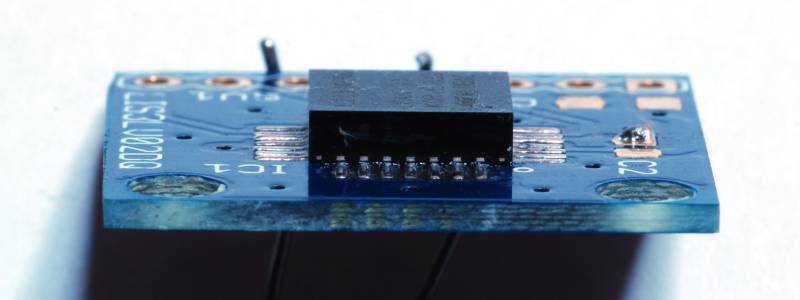

third side of the soldered acc board fourth side of the soldered acc board

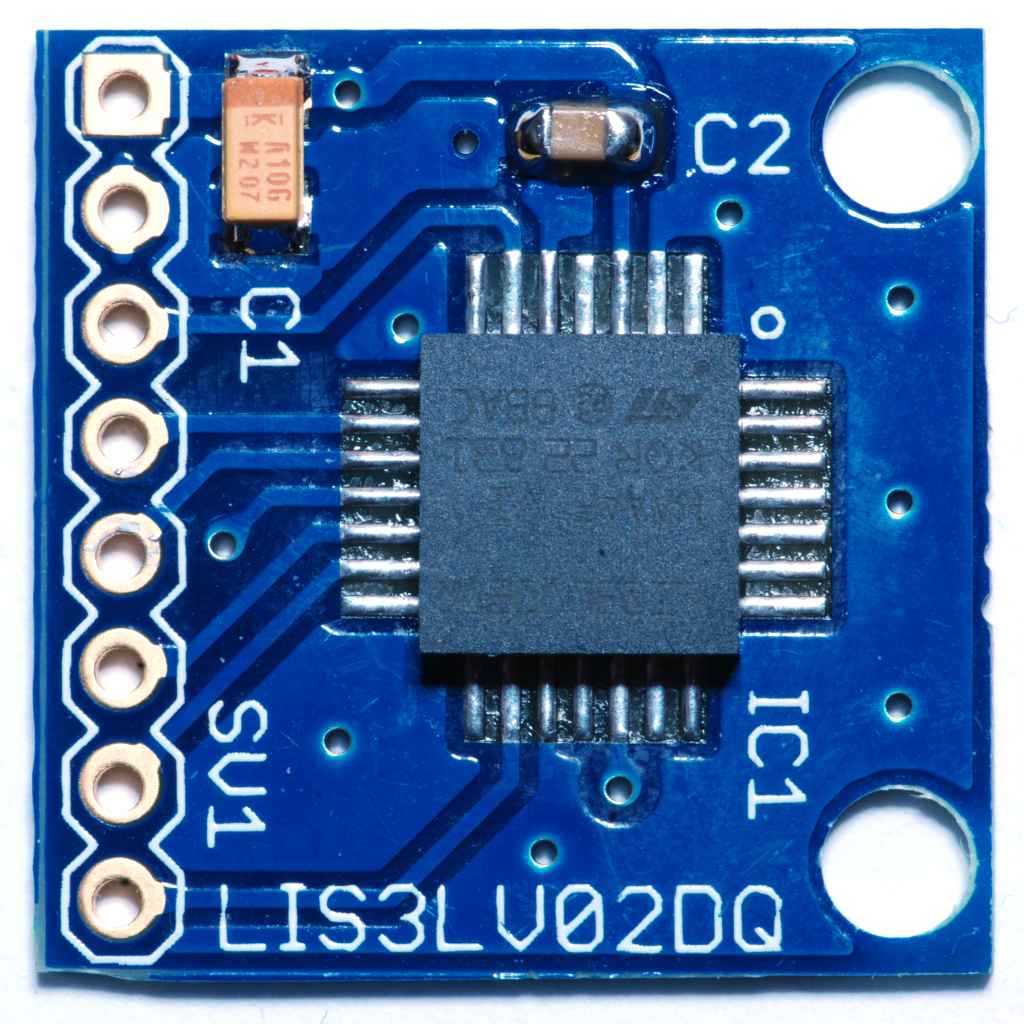

Picture of the complete board

acc board soldered completely
