CAD Section

Programs / Formats

Most of the engineers work with common programs such as Solidworks, Autocad, Catia or Pro-Engineer. To make files exchangeable we use .dxf for 2D and .stp for 3D Files

CAD Parts

Centerplates


Name


Drawing

Material

Description

Weight

Files

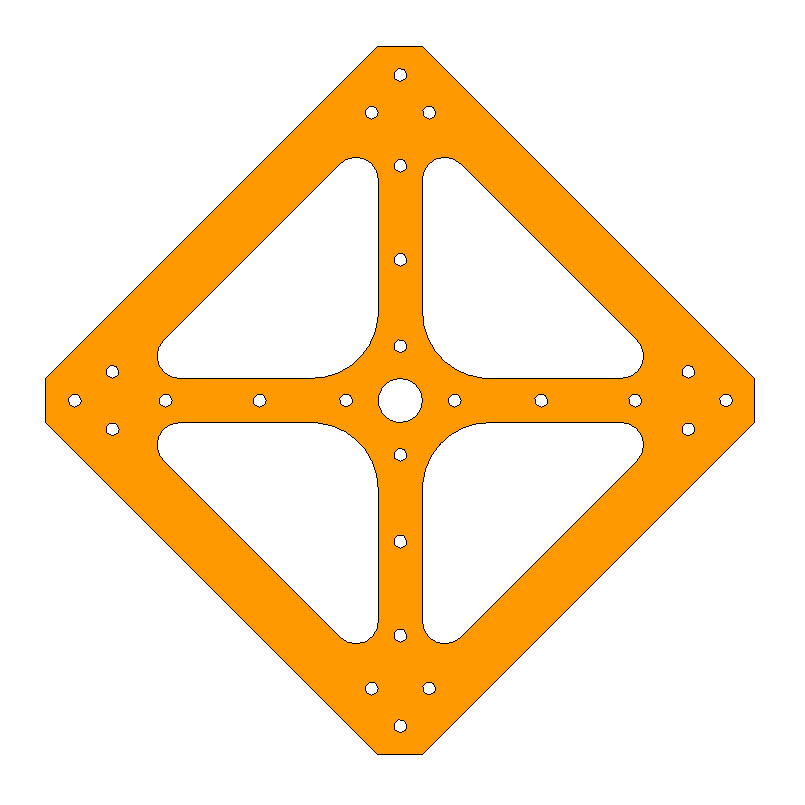

Centerplate Straight

Straight

-

1-2mm Glassfibre / Carbon

Simple, straight Centerplate

10mm
11.5mm

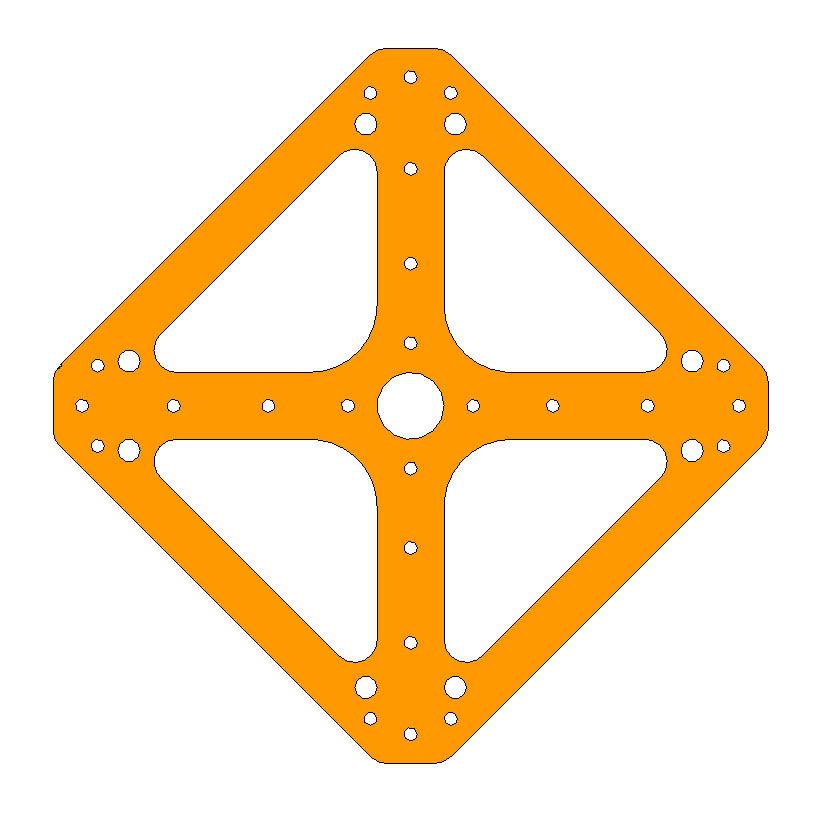

Centerplate Straight

Straight15

-

1-2mm Glassfibre / Carbon

Simple, straight Centerplate

15mm

Centerplate Straight Light

Straight

-

1-2mm Glassfibre / Carbon

Simple, straight Centerplate

14.36 g (1mm GF)

11.5mm

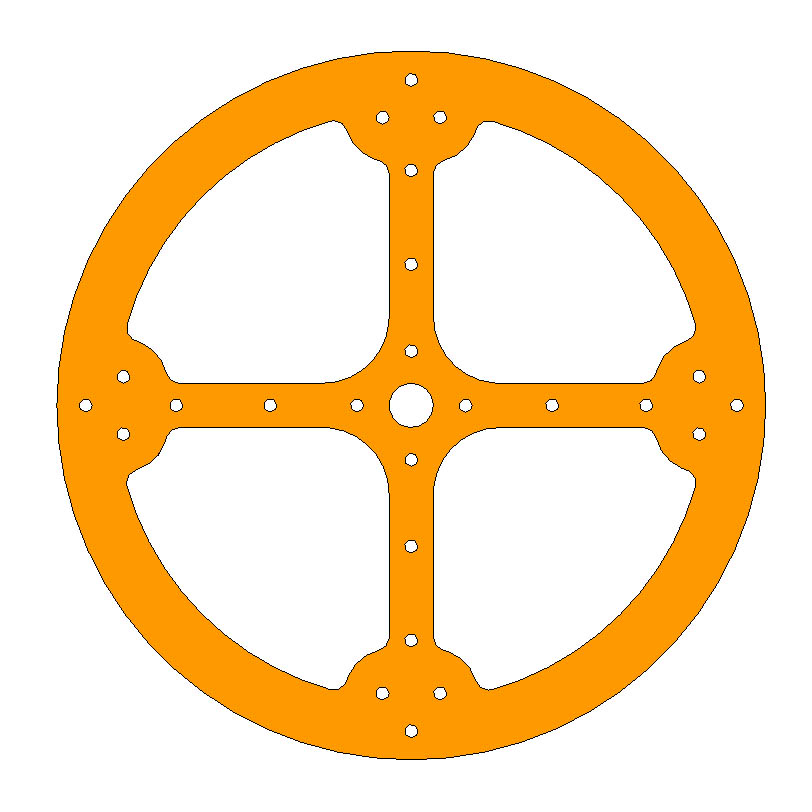

Centerplate Round

Round

-

1-2mm Glassfibre / Carbon

Simple, round Centerplate

10mm
11.5mm

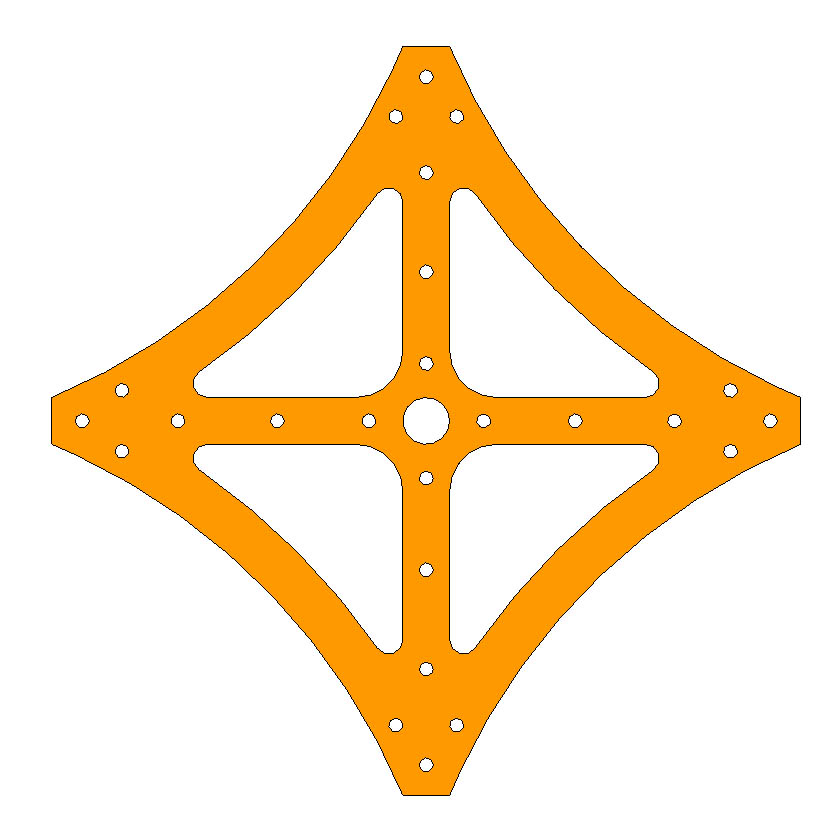

Centerplate Concave

Concave

-

1-2mm Glassfibre / Carbon

Simple, concave Centerplate

10mm: 15g (1.5mm CF)
15mm: 16.5g (1.5mm CF)

10mm
11.5mm
15mm

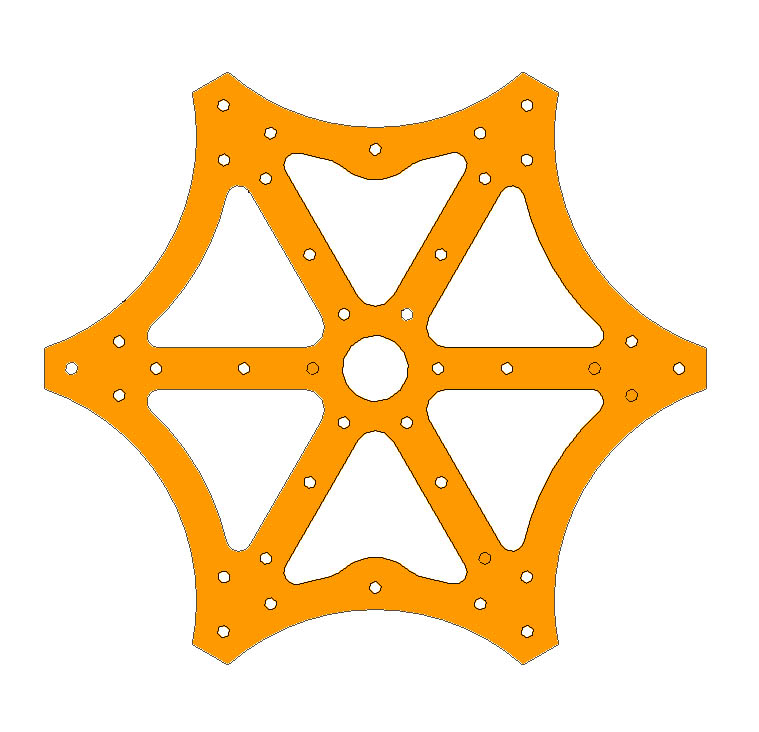

Centerplate Concave Hexa

Hexa

-

1-2mm Glassfibre / Carbon

Centerplate for Hexacopter

{i} Bugfixed version

14.87 g (1mm GF)
17 g (1.5mm CF)

10mm

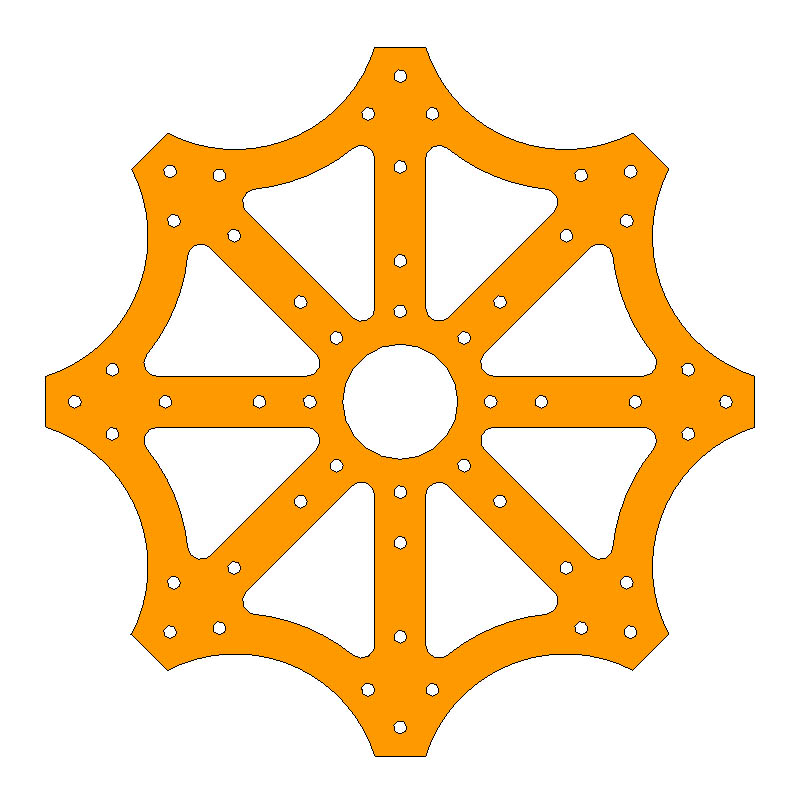

Centerplate Concave Octo

Okto

-

1-2mm Glassfibre / Carbon

Concave Centerplate for Octokopter

19 g (1mm GF)

11.5mm

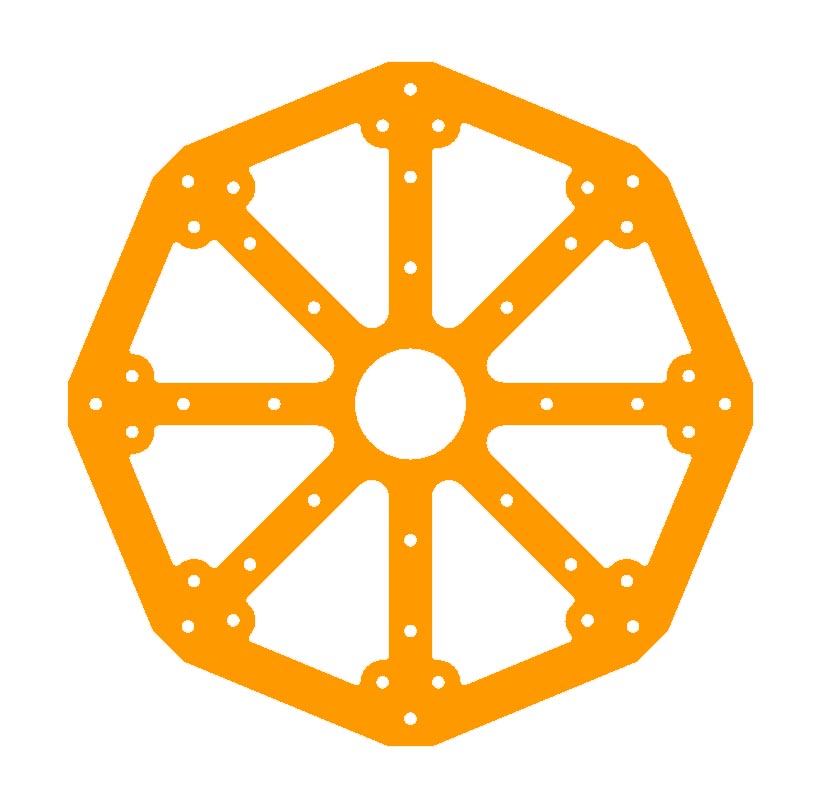

Centerplate Straight Octo

Okto

-

1-2mm Glassfibre / Carbon

Straight Centerplate for Octokopter

10mm

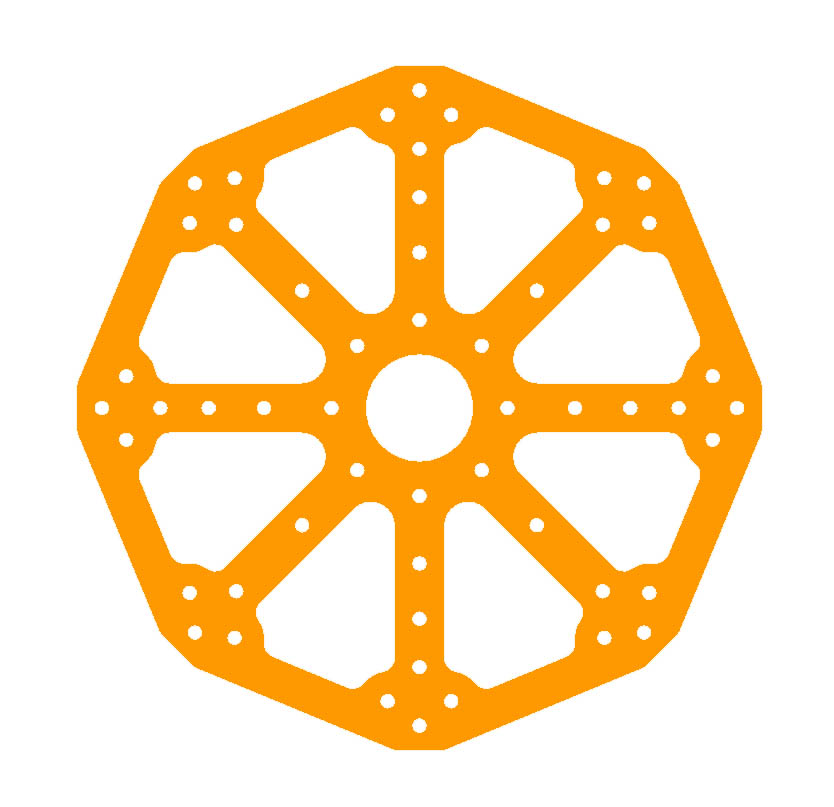

Centerplate Straight Octo Small

Okto

-

1-2mm Glassfibre / Carbon

Straight Centerplate for Octokopter

{i} This Centerplate fits NG-UAVP, NG-UAVP-mini, Arm-O-Kopter and Mikrokopter. It only has 140mm in diameter

10mm

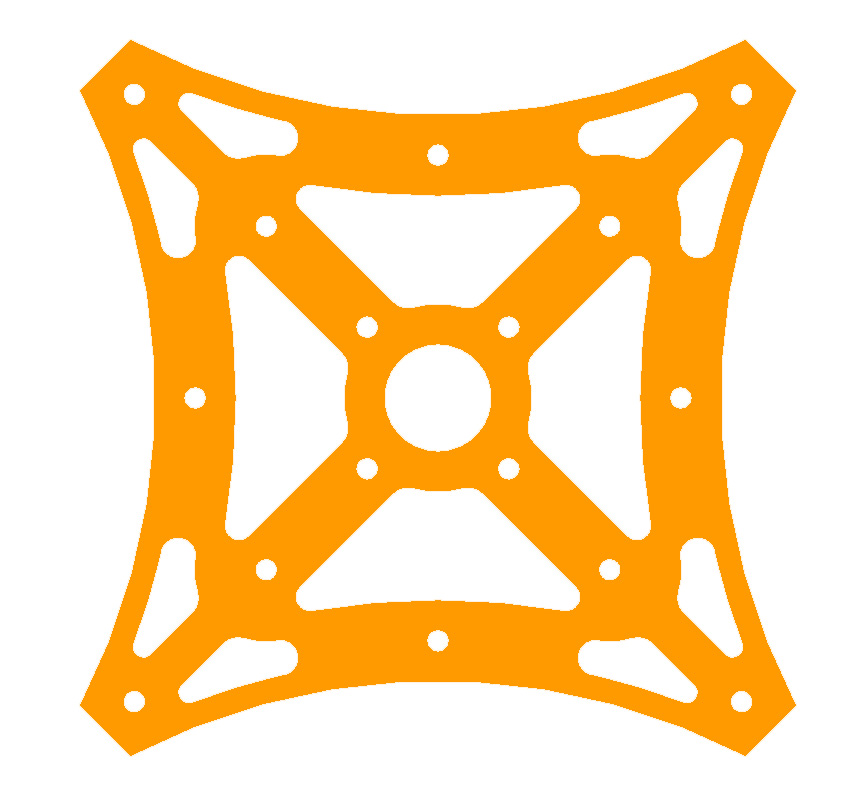

Centerplate Concave Small

konkav

-

1-2mm Glassfibre / Carbon

Concave Centerplate for the Mini-NG PCB

{i} This Centerplate fits only the NG-UAVP-mini. It has about 130mm in diameter

10mm

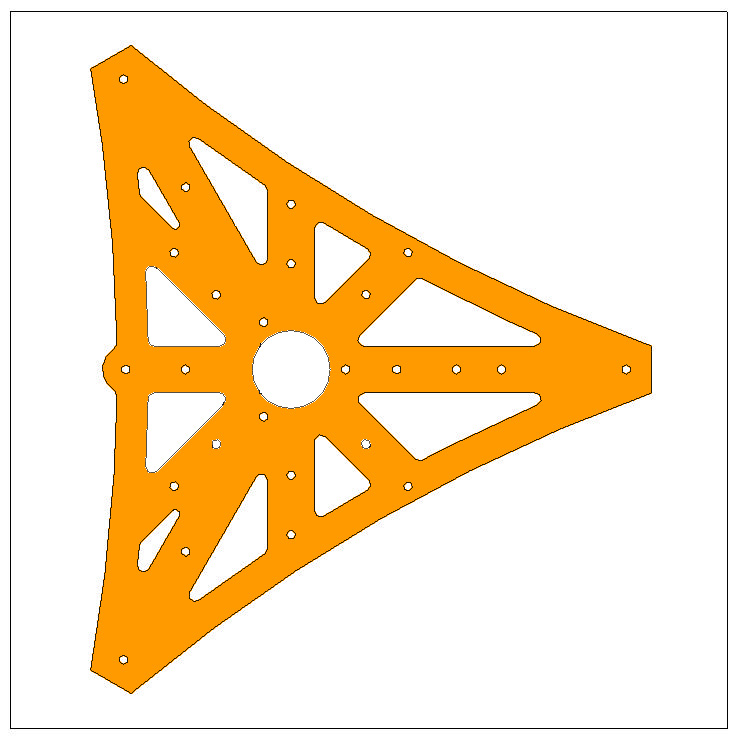

Centerplate Y6 Big

konkav

-

1-2mm Glassfibre / Carbon

Concave Centerplate for Big Y6 Copters

{i} This Centerplate is still untested, MiniNGPCB rotated at 45° may not fit

15mm

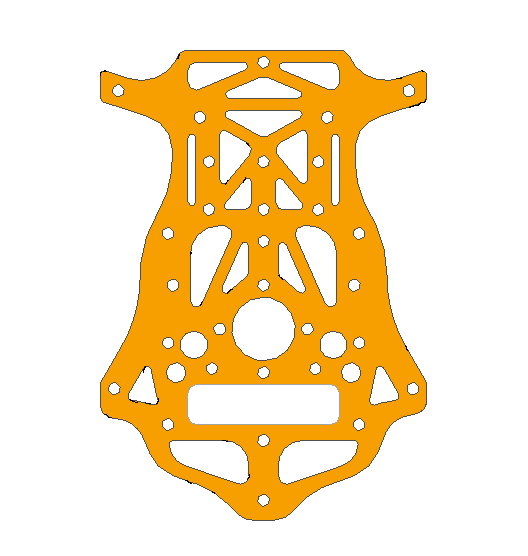

Centerplate Wasp

wasp

-

1-2mm Glassfibre / Carbon

Asymmetric Centerplate for small Copters

{i} This Centerplate is tested. Only X-Mode

7,5mm

Frames

Name


Drawing

Material

Description

Weight

Files

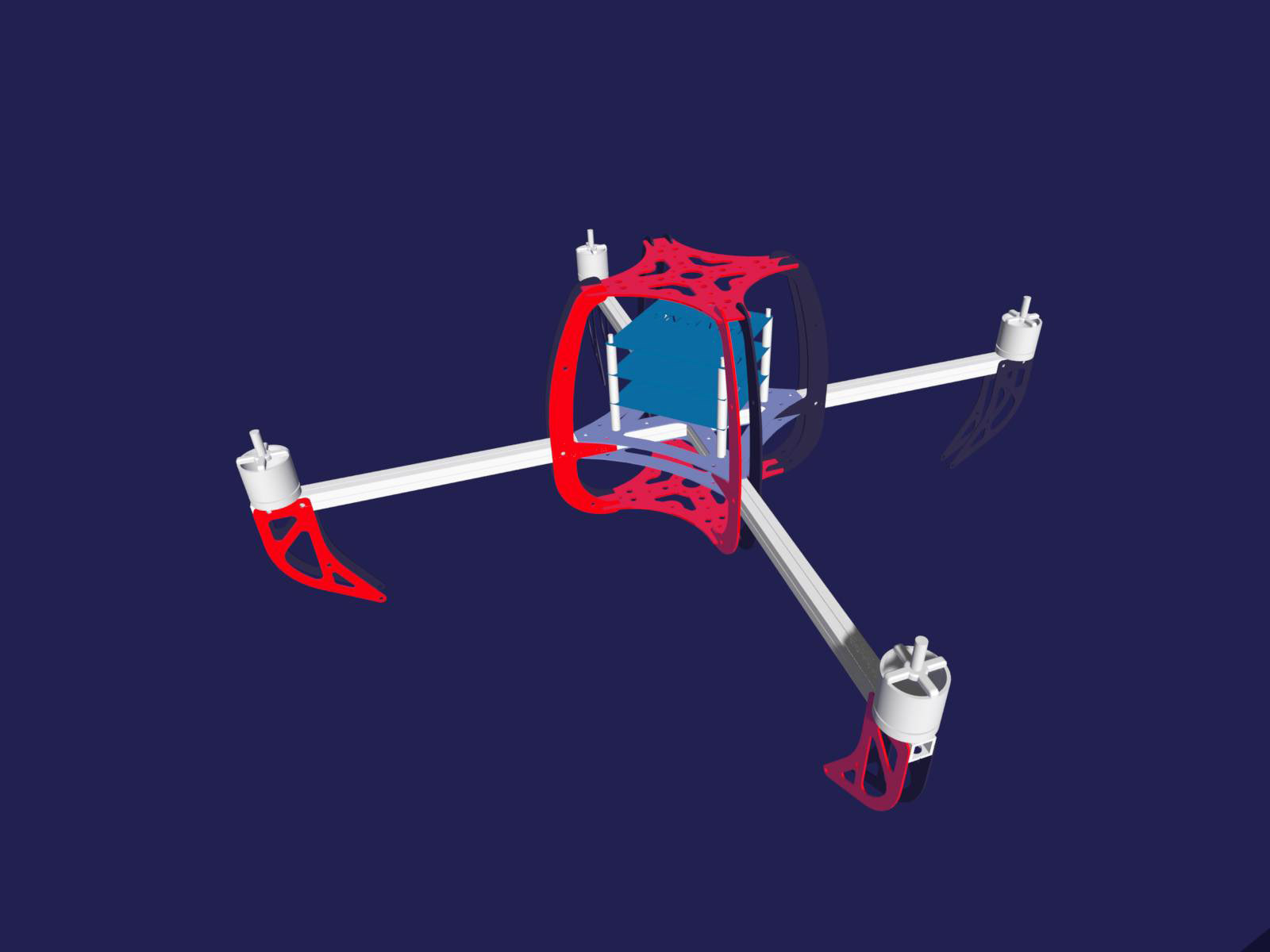

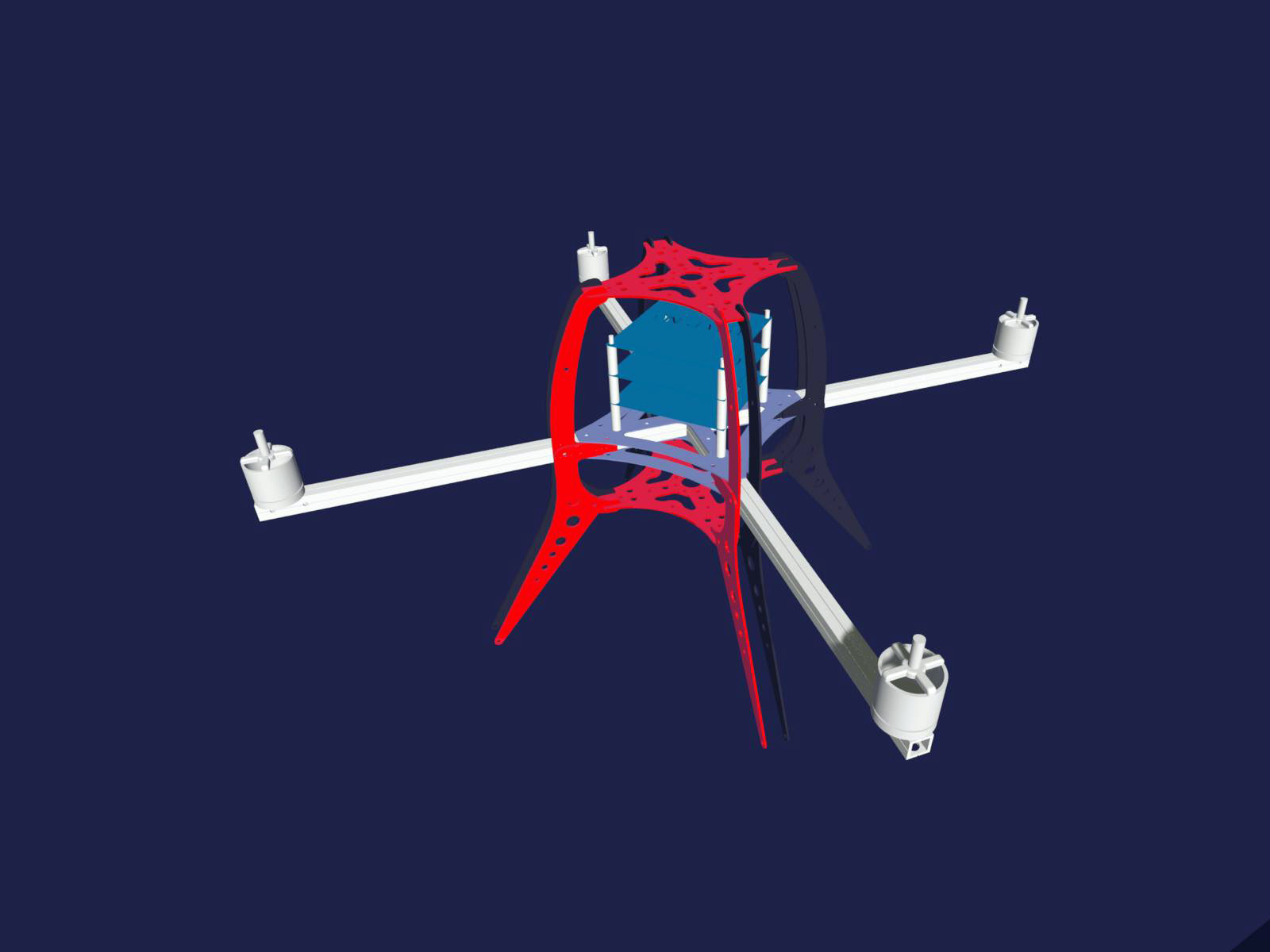

CargoNG big landinggear


Aluminum Struts 10mm Aluminum Struts 11.5mm, PDFs to print and play

1.5mm Glassfibre/Carbon, 10x1mm or 11.5x1.5mm Aluminum

Simple Quadrocopterframe with lots of space, PCB tower can be 97.5mm high, battery can be 42mm high. Package contains two Landinggears, any 10 / 11.5mm (choose the matching one) centerplate will fit {i} new and old core are NOT compatible, if you are about to mill, take the "New Core" Version!

10mm, 10mm New Core, 11.5mm, 11.5 New Core, 12.7mm (1/2inch)

CargoNG small claws-landing-gear


same as with big-langinggear

same as with big-langinggear

included in the big landiggear files

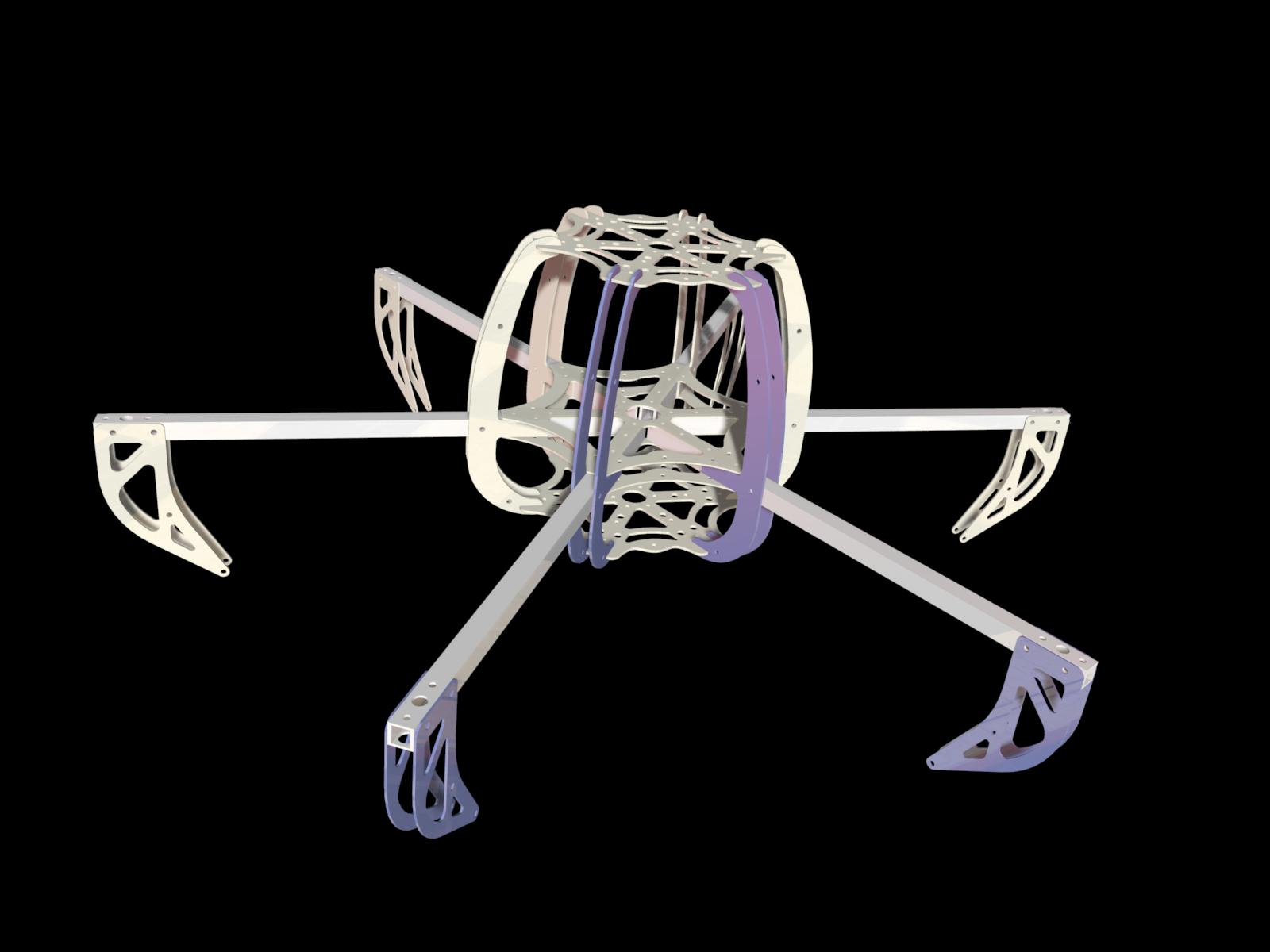

CargoHexa


1.5mm Glassfibre/Carbon, 10x1mm Aluminum

Same as CargoNG but Hexa version

CargoHexa

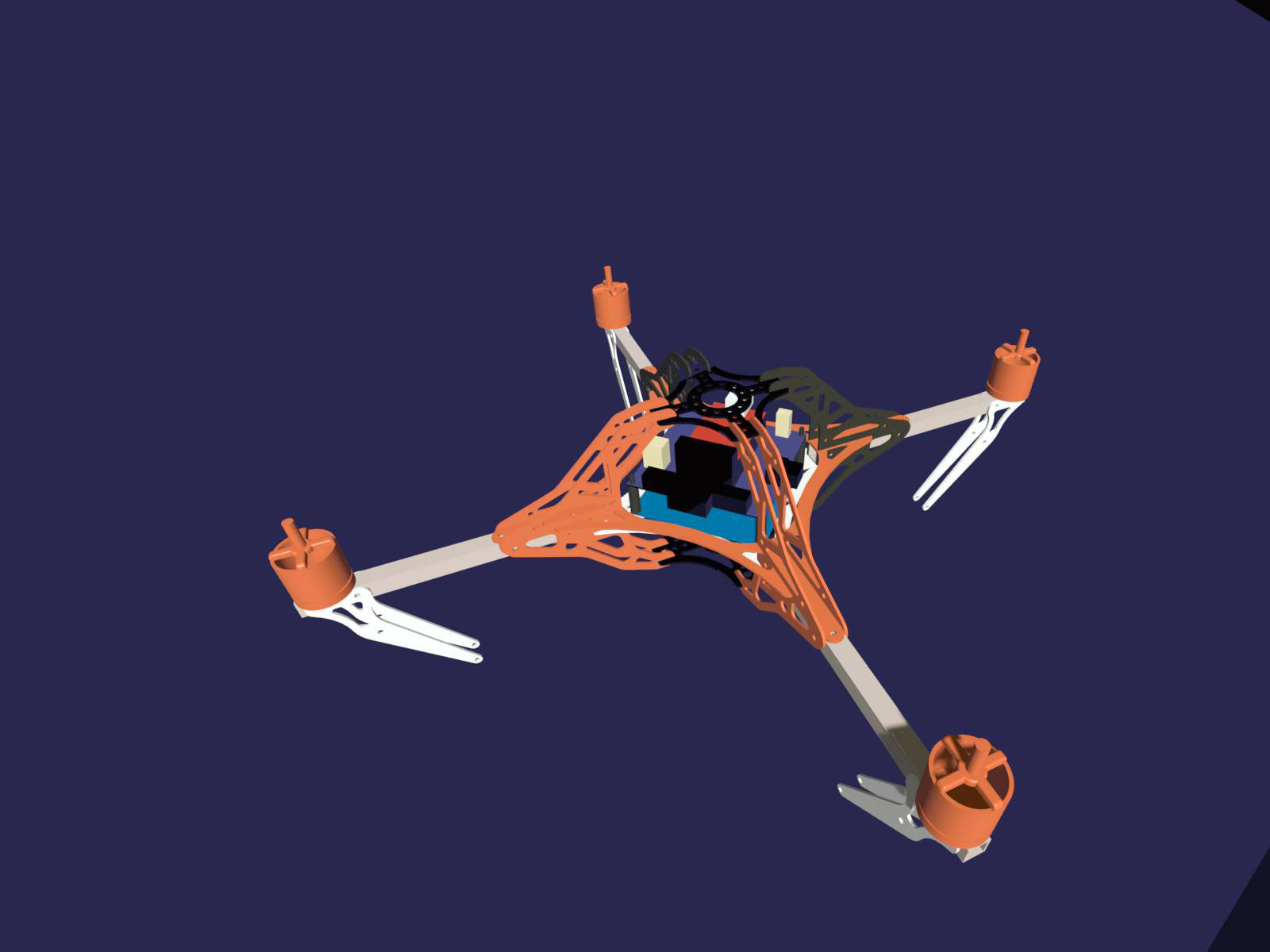

FlaNG


Aluminum Struts

1.5mm Glassfibre/Carbon, 10x1mm Aluminum

Advanced Quadrocopterframe with special centerplate design, really tight around the NG-Electronics, for advanced users only! (Battery clearance ~37mm if slimmer than 38mm, 32mm if slimmer than 52mm, PCB spacers must be ~10&15mm)

<200g

FlaNG 10mm

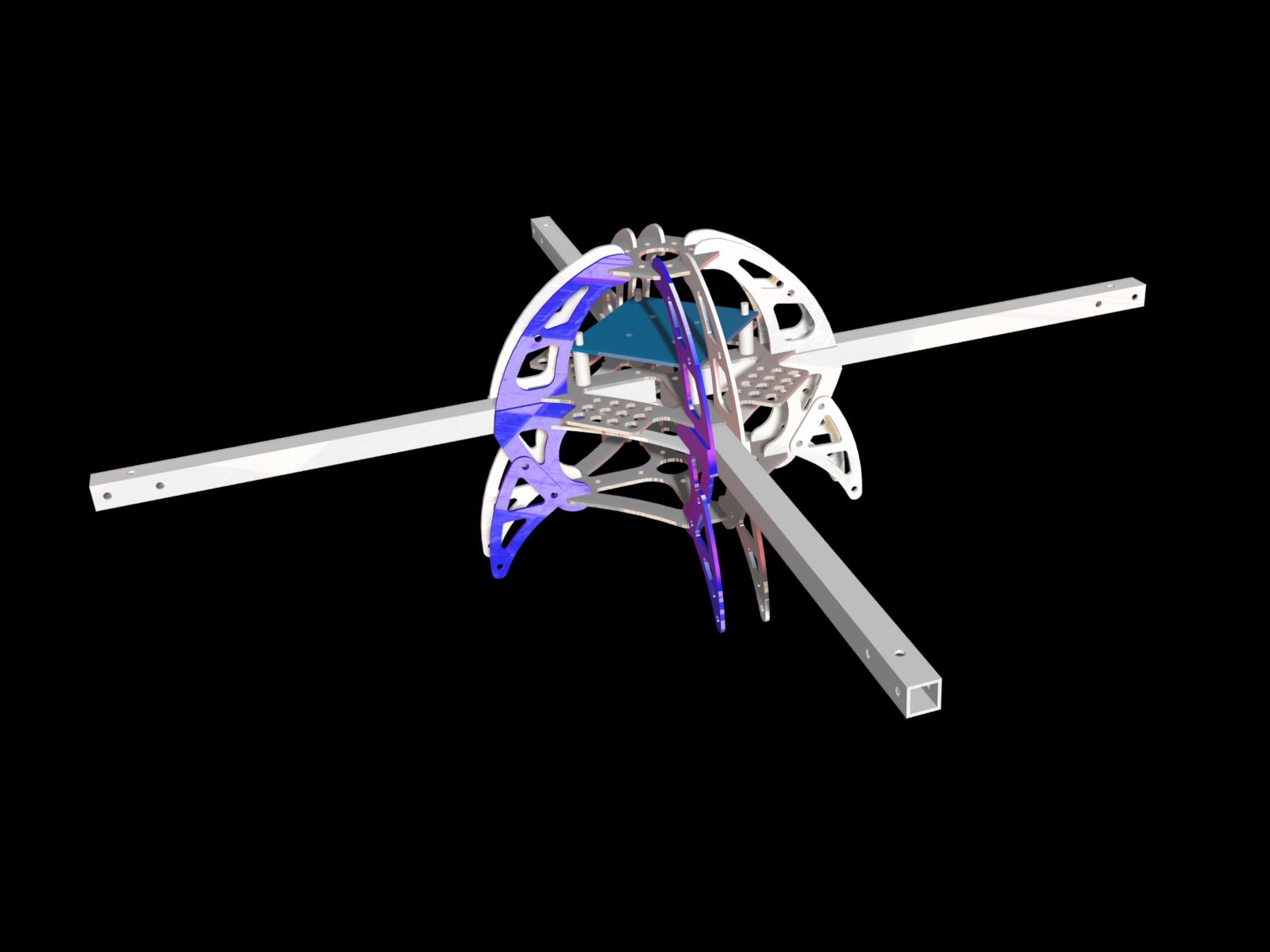

MiNG


Aluminum strut drawing in .zip file

1.5mm Glassfibre/Carbon, 10x1mm Aluminum

Small frame for the Mini-NG PCB, for more specifications visit the forum! {i} no prototype yet, use files at your own risk!!

~150-200g

miNG 10mm

Cameramounts

Other Parts

Name


Drawing

Material

Description

Weight

Files

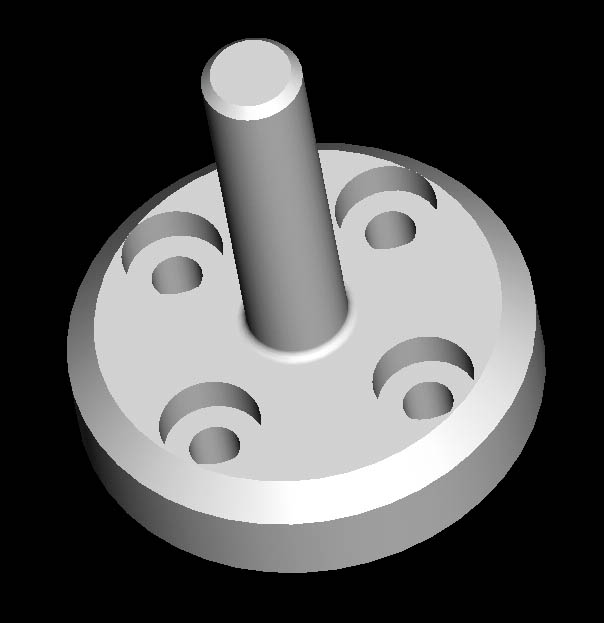

Prop Clutch

Clutch

Clutch

25mm Aluminum

Simple Prop Clutch for the Turnigy TR35-30 motors, 5mm shaft to fit the EPP Props

~6.15g

no 3d yet

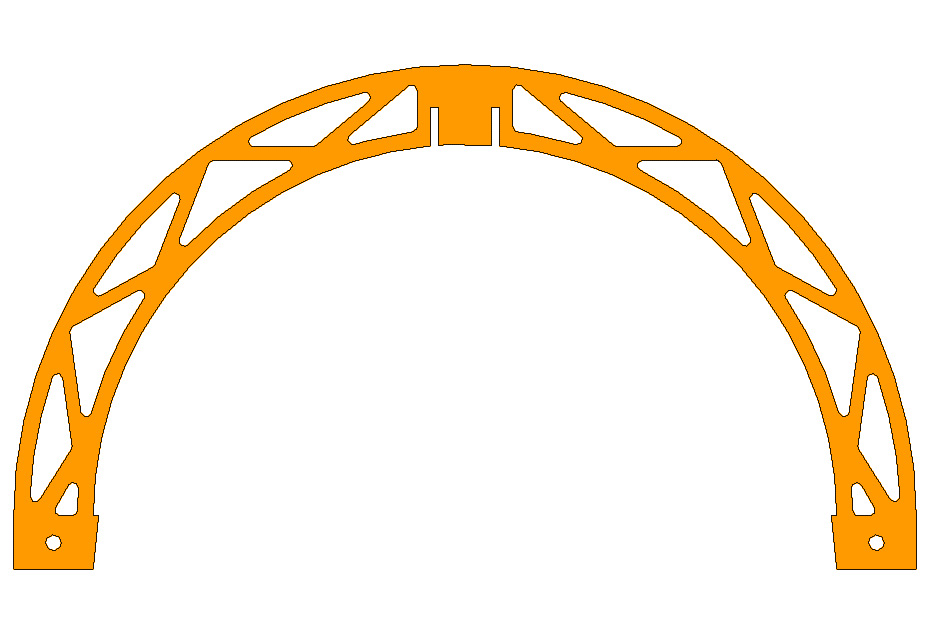

Bumper

Clutch

1.5mm GFK/CFK

Simple Bumper for the Big Shop CP

~7g

Bumpers

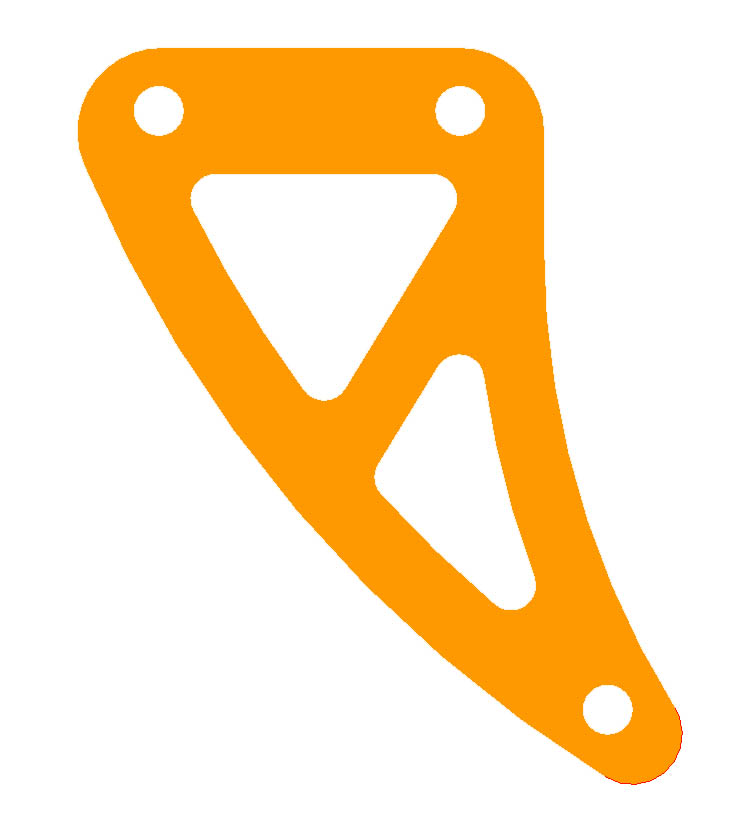

Small Claws

Claws

1-1.5mm CFK / GFK

Tiny but aggressive looking landers with a ground clearance of about 36mm. Nice for small copters where the Cargo-Claws look too big

~1.8g (1.5mmGF) each

smallclaw 7.5-11.5mm

GoPro LowerDeck for miNG

1-1.5mm CFK / GFK

Lowerdeck for the GoPro HD Hero Camera {i} untested!

~someweight(1.5mmGF)

mingPROdeck
